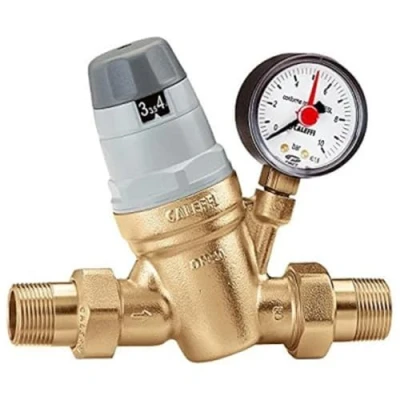

Thermador "r53520 Pressure Reducer 3/4 with Gauge

Plumbing Superstore

The Series 535 high performance dial-up pressure reducing valves by Altecnic are ideal for hot and cold systems in semi-commercial and industrial settings. They allow pre-adjustment of discharge pressure from 1 to 6 bar with a handy adjustment knob featuring a pressure setting indicator. These valves feature an integrated unit design with an assembled internal cartridge and control knob mechanism, making them easy to remove for inspection, cleaning, and maintenance. Their compensated seat design ensures consistent downstream pressure regardless of upstream variations, while the hydraulic profile minimizes pressure losses even with many open outlets. The control stem housing is made from adhesion-resistant plastic, preventing scale formation. Available in multiple sizes, they withstand a max inlet pressure of 25 bar at a max temperature of 40C. Made of DZR brass, they are simple to install, adjust, and are WRAS approved.. Altecnic Series 535 Pressure Reducing Valve - 3/4 inch Alloy Brass Stainless Steel

Amazon

Pressure reducer Display mono setting of the Cartridge be removed for maintenance. Brass body, Dust filter supplied with internal mano., Weight: 2.18037177118 Pounds, Manufacturer: Thermador
