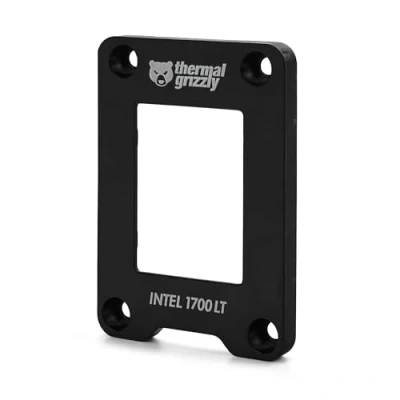

Thermal Grizzly CPU Contact Frame Intel 1700 LT For Optimized Pressure To Improve The Cooling Performance “Lite Version by der8auer

Thermal Grizzly Intel 1700 Gen Cpu Contact Frame. Optimize your Intel 12th-14th Gen LGA1700 CPU cooling with the Thermal Grizzly CPU Contact Frame Intel 1700 LT. This cost-effective, injection-molded frame utilizes glass-fiber reinforced ABS to precisely distribute mounting pressure. Unlike stock Intel mechanisms that cause uneven IHS curvature, this frame shifts pressure to the edges, ensuring your CPU cooler makes full, flat contact. This improved contact significantly enhances heat dissipation, leading to noticeably lower CPU temperatures. Easy to install, it´s compatible with a wide range of LGA1700 CPUs and coolers, even those with slightly de-lidded IHS. Upgrade your system´s thermal performance effortlessly. The Thermal Grizzly CPU Contact Frame Intel 1700 LT is the ´´Lite´´ version of the Intel 13th/14th Gen CPU Contact Frames and is produced using cost-effective injection moulding. To achieve the necessary stability for the Contact Frame, a high-quality acrylonitrile butadiene styrene copolymer with a 15% glass fibre content is used. The inner contour of the Lite version is identical to that of the frame milled from aluminium.The standard Integrated Loading Mechanism (ILM) has contact points located in the middle of the elongated CPU. As a result of the resulting uneven pressure of the processor in the socket, the surface of the Integrated Heatspreader (IHS) becomes concave. This causes the base plate of the CPU cooler to mainly rest on the edges of the IHS, so that the thermal ´´hotspot´´ in the middle of the CPU is not optimally covered.The CPU Contact Frame Intel 1700 LT has a special inner contour to shift the pressure from the centre of the CPU to the edges during installation. This avoids the concave curvature of the IHS. This results in CPU coolers sitting better on the processor and having a larger contact area to dissipate the CPU´s heat.The installation of the Contact Frame is very simple and only requires a few steps. Depending on the CPU cooler and CPU used, the processor temperatures can be noticeably reduced.The CPU Contact Frame Intel 1700 LT is compatible with processors of the 12th, 13th, and 14th generation for socket LGA1700. Additionally, the frame is compatible with CPUs whose Integrated Heatspreader (IHS) has been ground down by no more than 0.2 millimetres. When installing, care must be taken to ensure that there are no electronic components under the frame. This is especially important for motherboards with the Mini-ITX form factor.Specifications:- Dimensions: 51 x 6 x 71 mm (W x H x D)- Material: ABS- Compatibility: Intel LGA 1700 (Intel 12th, 13th, and 14th Gen ´´Alder Lake´´, ´´Raptor Lake´´)-. tradeinn Techinn

OPTIMIZED COOLING PERFORMANCE - Designed to improve the contact pressure, enhancing the cooling performance of CPU coolers and resulting in lower CPU temperatures EASY INSTALLATION - Quick and hassle-free installation process, making it simple to upgrade your CPU cooling performance in just a few steps LITE VERSION - Made by injection molding from acrylonitrile-butadiene-styrene copolymer with 15% fiberglass for added stability DESIGNED BY DER8AUER - Developed in collaboration with renowned overclocker Roman "der8auer" Hartung and manufactured in Berlin - 100% Made in Germany IMPROVED CONTACT - Special inner contour for optimal pressure distribution, preventing the concave curvature of the Integrated Heatspreader (IHS) and providing a larger contact area for more efficient heat dissipation
