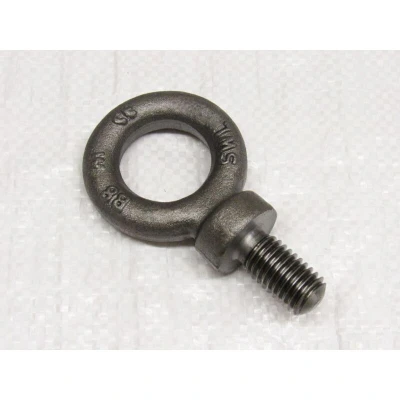

Threaded Lifting Eye Bolt M16 (Self Colour Dynamo Eyebolt 0.63T BS4278 Table 3)

Dynamo Eyebolt Thread DIA - M16 Finish - Self Colour Conforms To BS4278 PRODUCT CODE SWL (TON) A (MM) B (MM) C (MM) D (MM) E (MM) F (MM) G (MM) H (MM) PITCH SFMDE06 0.06 19.5 42.5 21 6 10 27 10.5 20 1.00 SFMDE08 0.15 19.5 41.8 22.3 8 10.6 27 10.5 20 1.25 SFMDE08ZP 0.15 19.5 41.8 21.4 8 10.8 27 10.9 20 1.25 SFMDE10 0.25 19.2 41.6 21.5 10 10.7 26.5 11 19.5 1.5 SFMDE10ZP 0.25 19.2 42.5 22.5 10 9 26.5 10.3 20 1.5 SFMDE12 0.32 25 49 28 12 11 37 10 24 1.75 SFMDE12ZP 0.32 25 49 28 12 12 36 11 24 1.75 SFMDE16 0.63 28.8 58.5 32.7 16 16.8 41.4 14.2 30 2.00 SFMDE16ZP 0.63 29.9 58 30.7 16 14 40 15.1 30 2.00 SFMDE20 1.2 36.3 73.3 39 20 20 53.8 18.1 32.3 2.5 SFMDE24 2.2 40.5 89.2 49.6 24 24.2 65.7 20 47.9 3.00 SFMDE310 0.23 17.3 40.4 22.2 10 9.5 27.8 13.1 17.5 1.5 SFMDE312 0.32 17.3 40 21.7 12 8.4 27.4 14.3 17.7 1.75 SFMDE316 0.63 22.3 50.8 28.6 16 8.6 34.6 14.3 22.7 2.00 SFMDE320 1.25 32.9 69.3 38.9 20 10.9 46.7 21.4 32.4 2.50 SFMDE324 2 39.5 88.4 50.5 24 19 60 22.6 40.5 3.00 SFMDE330 3.2 53 111
