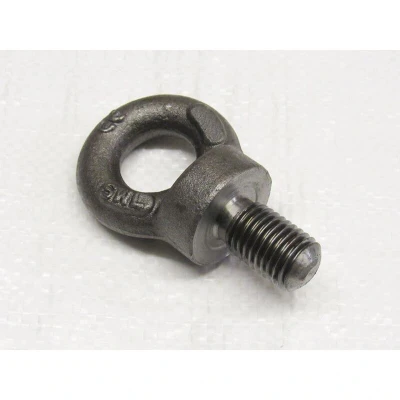

Threaded Lifting Eye Bolt M20 (20MM Self Colour Collar Eyebolt 1.6 Ton)

ManoMano

Specifications: ProDuct Code: SFMCE20 Product Weight: 0.42kg 20MM 1.6 Ton Threaded Collar Eyebolt Thread DIA - 20MM Conforms To - BS4278 Finish - Self Colour CODE SWL (Ton) A (MM) B (MM) C (MM) D (MM) E (MM) F (MM) G (MM) H (MM) Pitch SFMCE06 0.1 22 33 15.5 6 8 21 8.5 19 1.00 SFMCE08 0.15 22.5 33 14.5 8 8 20 9 19 1.25 SFMCE10 0.25 22.5 32.5 15 10 9 20 9 19.5 1.50 SFMCE12 0.4 22 33 14 12 9 21 13.5 19 1.75 SFMCE12ZP 0.4 23 32.5 14.5 11.5 9 19 9 19 1.75 SFMCE14 0.5 29 44 20.5 14 14 26 11.5 24.5 2.00 SFMCE16 0.8 29 44 20 16 11 25 12 24 2.00 SFMCE16ZP 0.8 29 44 20 16 11 25 12 24 2.00 SFMCE18 1 40.5 58 26.5 18 16 35 16 33 2.50 SFMCE20 1.6 40 59 27.5 20 17 36 15.5 33.5 2.50 SFMCE20ZP 1.6 40 59 27.5 20 17 36 15.5 33.5 2.50 SFMCE22 1.6 52.5 76.5 35.5 22 18 43.5 21 36 2.50 SFMCE24 2.5 51 76 35 24 22 45 21 40.5 3.00 SFMCE24ZP 2.5 51 76 35 24 22 45 21 40.5 3.00 SFMCE27 2.5 57.5 84 38 27 22.5 52 22.5 46 3.00 SFMCE30 4 67 96.5 43.5 30 27 58 26 53 3.50 SFMCE30ZP 4 64.5 95.5 42.5 30 27 59 27.5 47

Amazon

SWL - 1.6 Ton A=40MM, B=59MM, C=27.5MM D=20MM, E=17MM, F=36MM G=15.5MM, H=33.5MM Pitch = 2.50, Manufacturer: SecureFix Direct
