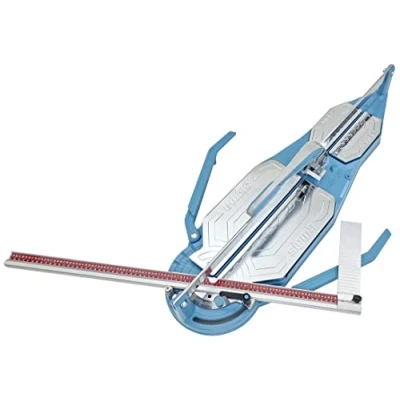

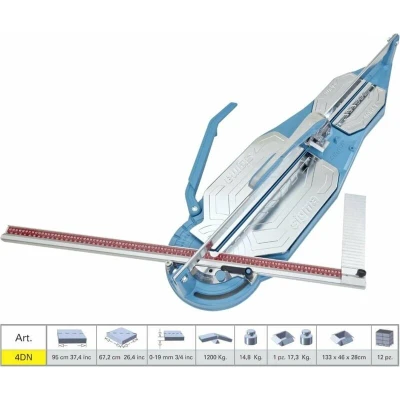

Tile Cutter Art. 4DN 95 cm

ManoMano

General description Pushing incision is easy and deep with minimum effort, making it perfect for rough, thick, and large tiles. The ergonomic handle is specifically designed for pushing incision. Technical specifications Maximum cutting length: 95 cm Diagonal cutting length: 67.2 cm Maximum cutting thickness: 19 mm Breaker strength: 1200 kg Weight: 14.8 kg Scoring wheel diameter: 16 mm Wheels with internal bearing for maximum smoothness Splitting foot width: 120 mm Other information The scoring wheel is equipped with double suspension for cushioned scoring of structured tiles. The scoring wheel rotates on a roller bearing, guided laterally by an anti-friction metal shell to avoid friction and lateral clearance. The sliding carriage is clearance-free, thanks to 3 double-row ball bearings that ensure precision over time without maintenance. Automatic system keeps the handle raised to facilitate tile insertion. Automatic steel compensator adjusts the slide preload on the rail. For the

Amazon

NEX Grip Ergonomically shaped handle, specific for push engraving. The 16 mm diameter engraving wheel is always clearly visible on the operator side and equipped with double spring for the soft engraving of textured tiles The engraving wheel rotates on roller bearing, driven sideways by an anti-friction metal shell inserted into a CNC milled housing, to prevent friction and side wear 16 mm diameter wheels with inner bearing for maximum smoothness during engraving, also available in TIN coated version, Manufacturer: Sigma
