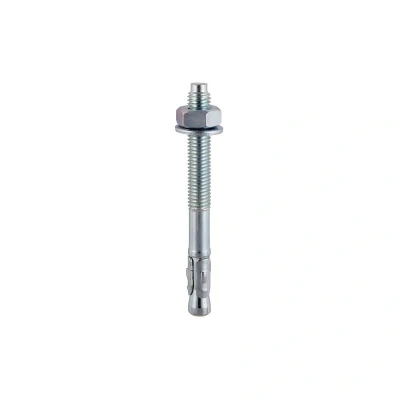

TIMco 12120TB BZP Through Bolt 12 x 120 Zinc (Box of 25)

A Versatile Torque Controlled Through Fixing For Use In A Wide Range Of Anchoring Applications Into Concrete. Complete With Hex Full Nut And Washer. Note: If No Torque Wrench Is Available Tighten The Nut 3 To 4 Full Turns From Finger Tight. Chamfered Head Design To Prevent Damage To Thread During InstallationZinc Plated And Passivated (3-5 Microns)Manufactured From Cold Formed Carbon Steel (Grade 5.8)Special Expansion Clip For Rapid InstallationSee `More Information` below for sizing and Colour detailsSpecificationPackaged Width = 94mmFixture Hole Diameter (metric) = 14mmMaterial = Carbon SteelPackaged Height = 90mmNut Socket Size (metric) = 19mmEdge Distance (metric) = 75mmFinish = ZincPackaged Weight = 2.64kgPackaged Length = 162mmLength (metric) = 120mmThread Diameter (metric) = M12Max Fixture Thickness (metric) = 45mmMin Drill Hole Depth (metric) = 60mmDrill Hole Diameter (metric) = 12mmPTDTIM12120TB

General description A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. Technical specifications Size: M12 x 120 Compatibility and accessories Complete with hex full nut Includes washer Installation If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.
