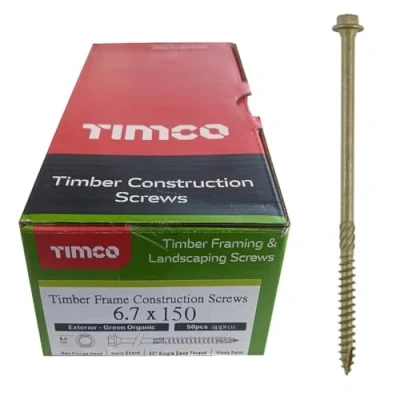

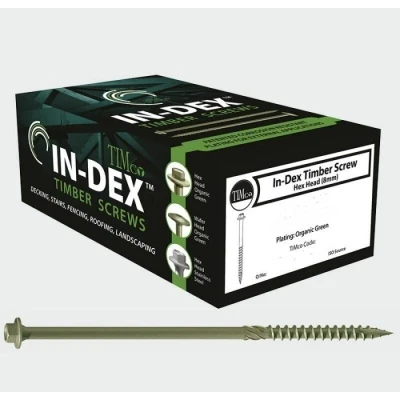

Timco 150IN Index Hex Head Timber Screw 6.7x150 Organic Green Box of 50

TIMco In-Dex Timber framing screws are a modern alternative to traditional coach screws, designed for timber-to-timber connections in structural building and landscaping applications such as decking, roofing, fencing, and railway sleepers. They feature a hex head and an 8 mm head size, a 150 mm length from underneath the head, and a gauge of 6.7 mm. The organic green plating is tested for a minimum of 1,000 hours salt spray resistance in accordance with BS EN 9227:2012. The screws include a 25-degree sharp point for easy penetration into wood and a 50-degree deep single thread for fast and secure fixing with high pull-out resistance, along with a Type 17 slash to reduce insertion torque and minimize the risk of timber splitting. A patented lubrication is designed to enhance insertion time and improve corrosion resistance, and the helix shank helps remove debris and improve clamping.

Features

• 50° deep single thread for high pull-out resistance
• 25° sharp point for fast start and thread acceptance
• Type 17 slash lowers insertion torque and reduces splitting
• Helix shank for debris removal and improved clamping
• Patented lubrication enhances insertion time and corrosion resistance
• Hex head countersunk with fixed washer

Technical specifications

• Gauge: 6.7 mm
• Length: 150 mm (from underneath head)
• Head: 8 mm hexagon head
• Plating: organic green, 1,000 hours salt spray resistance (BS EN 9227:2012)
• Applications: decking, roofing, fencing, timber-to-timber connections
