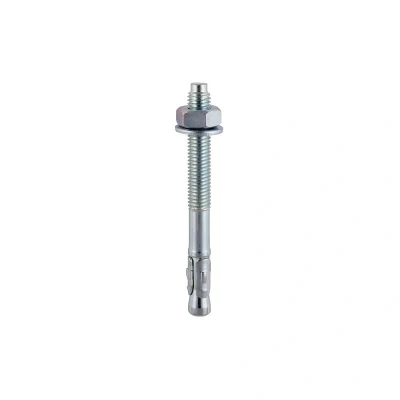

TIMCO BZP Through Bolt 16 x 175 Zinc Box of 15

A Versatile Torque Controlled Through Fixing For Use In A Wide Range Of Anchoring Applications Into Concrete. Complete With Hex Full Nut And Washer. Note: If No Torque Wrench Is Available Tighten The Nut 3 To 4 Full Turns From Finger Tight. Chamfered Head Design To Prevent Damage To Thread During InstallationZinc Plated And Passivated (3-5 Microns)Manufactured From Cold Formed Carbon Steel (Grade 5.8)Special Expansion Clip For Rapid InstallationSee `More Information` below for sizing and Colour detailsSpecificationPackaged Width = 94mmLength = 175mmFixture Hole Diameter (metric) = 18mmPackaged Height = 94mmNut Socket Size (metric) = 24mmEdge Distance (metric) = 100mmFinish = ZincMaterial = Carbon SteelPackaged Length = 182mmLength (metric) = 175mmMin Drill Hole Depth (metric) = 75mmThread Diameter (metric) = M16Packaged Weight = 4.04kgMax Fixture Thickness (metric) = 70mmDrill Hole Diameter (metric) = 16mmPTDTIM16175TB

General description A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. Technical specifications Size: M16 x 175 Usage Complete with hex full nut and washer. If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.
