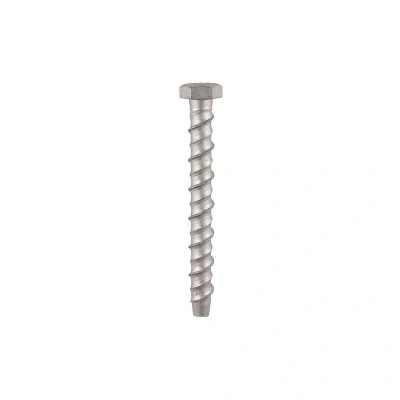

TIMco MF10160 Multi Fix Hex Flange Head Bolt 10 x 160 Micro Plating (Box of 50), Silver

This Stress Free Non-Expansion Through Fixing Is The New Solution For Heavy Duty Anchoring Into Concrete Brick Stone Wood And Concrete Block Replacing The Need For Traditional Anchors Such As Throughbolts Shield Sleeve And Drop-In Anchors. Designed To Replace Traditional Expansion AnchorsTimco Micro Plating Technology Gives A Higher Resistance To Corrosion And Enhances Speed Of InstallationHigh-Low Parallel Threads For Ease Of Insertion And High Pull-Out ValuesRemovable & Adjustable Non-Expansion Through FixingUnique Concave Thread ConfigurationAll Steel Non-Flammable Fixing Conforming To Bs 7671 Standard's 18Th Edition Which Requires Wiring Systems To Be Supported By Materials Which Are Unlikely To Prematurely Collapse In The Event Of A Fire.See `More Information` below for sizing and Colour detailsSpecificationSocket Size (metric) = 17mmPackaged Width = 94mmFixture Hole Diameter (metric) = 12mmPackaged Height = 94mmHead = HexFinish = Exterior (Silver Organic)Packaged Length = 138mmLength (metric) = 60mmMin Drill Hole Depth (metric) = 70mmThread Diameter (metric) = 10mmPackaged Weight = 2.32kgMax Fixture Thickness (metric) = N/ADrill Hole Diameter (metric) = 10mmPTDTIMMF1060

General description This stress-free, non-expansion through fixing is the new solution for heavy-duty anchoring into concrete, brick, stone, wood, and concrete block, replacing the need for traditional anchors such as through bolts, shield, sleeve, and drop-in anchors. Technical specifications Dimensions: 10.0 x 60 mm Material: Silver finish
