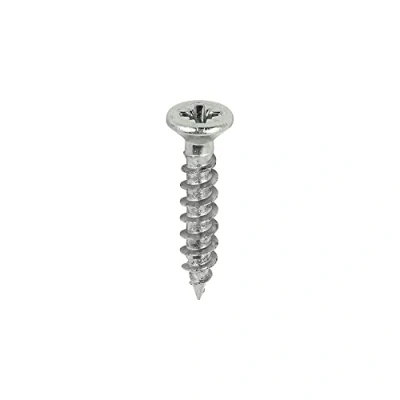

TIMCO PZ1 NKL Classic Hinge Screws 3.0 x 16 Nickel Plated Box of 200

Classic Multi-Purpose Screw is designed for use with continuous or piano hinges, featuring a reduced 5mm head for a seamless fit. The screw combines a double countersunk head to reduce head shear and improve countersinking, with new patented molecular lubrication to enhance insertion and provide greater corrosion resistance. A 40-degree deep single thread delivers high pull-out resistance, while a sharp A25 point aids easy penetration. The special thread configuration contributes to overall performance and pull-out resistance, and the surface is hardened up to 750 HV to help prevent torque shearing.

Features

• Double countersunk head reduces head shear
• Patented molecular lubrication for easier insertion
• 40-degree single thread for high pull-out resistance
• A25 sharp point for easy penetration
• Special thread configuration for high pull-out resistance
• Surface hardened up to 750 HV to prevent torque shearing

Technical specifications

• Dimensions: 3.0 x 16 mm
• Head diameter: 5 mm
• Point type: Sharp point
• Note: Sharp Point Only
• Model code: PTDTIM30016CLAHN
