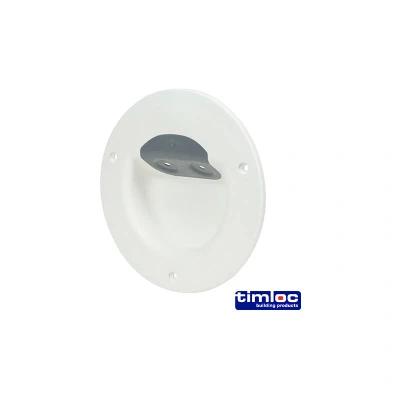

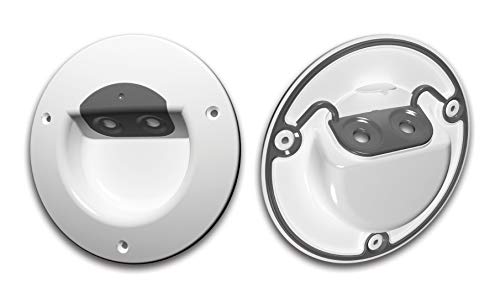

TIMCO Timloc Rad Recessed Radiator Pipe Guide and Seal White

Timloc Rad-Seal Radiator Pipe Guide and Seal is an installation aid designed to reduce air leakage and heat loss at vulnerable pipe entry points, ensuring a secure and efficient connection for radiator pipework. It features a 140.0 mm component suitable for 10 mm plastic radiator pipework at through-wall entry, projecting 5 mm from the wall to help position the pipe correctly. The design contributes to building regulations by supporting air leakage performance without the need for electrical black boxes, intumescent foams, or sealants, while stabilizing the pipework for reliable connection.

Features

• Eliminates potential air leakage at entry points
• Secures radiator pipework direction for connection
• Projects 5 mm from the wall
• For 10 mm plastic radiator pipework
• Replaces electrical black boxes, intumescent foams, or sealants

Technical specifications

• Product type: Radiator pipe guide and seal
• Dimensions: 140.0 mm
• For use at through-wall entry of 10 mm plastic radiator pipework
• Contributes to part L air leakage performance
