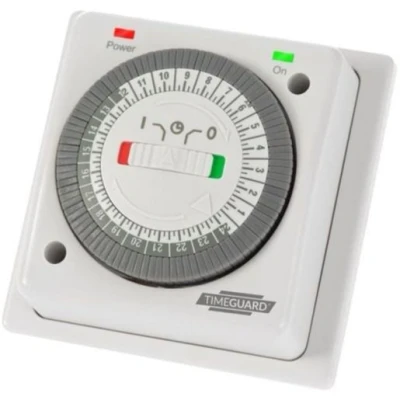

Timeguard 24 Hour Compact Immersion Heater Timeswitch

The TimeGuard NTT01 is a 24-hour mechanical timer designed for immersion heaters, offering a simple, dial-based interface without digital menus. It uses 15-minute segments, allowing up to 48 ON/OFF programmes per day. The dial can be set by turning to the pointer, and adjustments can be made while the timer is running. A permanent ON/OFF override is provided via a slider switch, with clear indicators showing the current mode. The timer is rated for 16A (3.68kW) resistive loads and includes LED indicators to show power and output status. It is intended to fit a standard wall box and is suitable for installation by a qualified electrician. The device supports a large number of quick-set segments for flexible scheduling and is not suitable for discharge lighting.

Features

• 24-hour mechanical timer for immersion heaters
• 15-minute segments; up to 48 ON/OFF programmes per day
• Permanent ON/OFF override with a traffic-light style slider
• 16A (3.68kW) resistive load rating
• Red power LED and green output LED indicators
• FITS a standard wall box; installation by a qualified electrician recommended; not suitable for discharge lighting

Not suitable for discharge lighting. Installation by a qualified electrician is recommended.
