Timeguard 24 Hour Fused Spur Timeswitch

Electrical World

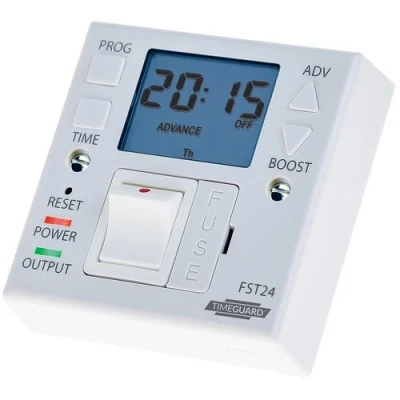

.container a:link { color: blue; } .container a:visited { color: purple; } .container a:hover { color: red; } .container a:active { color: green; } Timeguard FST24 24 Hour Fused Spur Timeswitch Timeguard's new look Fused Spur Timeswitch with easy viewing display, optional 1 or 2 hour boost facility and automatic Summer/Winter time changeover. Clearly delivering the tried and trusted features you expect from the SupplyMaster range. Up to 4 ON and OFF programmes available daily. Suitable for use with up to 3kW immersion heaters. Switches the following lighting loads: 750W incandescent or halogen lighting, 500W fluorescent lighting, 100W compact fluorescent lighting (CFLs) and 200W LED lighting. Not suitable for discharge lighting. Red LED Mains ON and green LED Output indicators for easy viewing. Permanent OFF and timed outputs available. Easy view 24 hour digital clock/timer display. Optional 1 or 2 hour boost facility. Automatic summer/winter time changeover. Self-cancelling override. Shortest switching time 1 minute. Programme advance and review options. BS1362 fuse replaceable from front. Double pole switch for ease of control. Integral memory back up battery retains programmes in event of power failure. Ideal for replacing single gang connection unit or fixed appliance outlets. Fits a single gang wall box min. 25mm deep. Technical Specification Timer Mode: 24 Hour Setting Type: Digital Operating Voltage: 230V AC Switch Rating: 230V AC, 13A Resistive (3kW) Operating Temperature: 0 to 40°C Battery Back-Up: 4 Weeks Rechargeable EC Directives: Conforms to Latest Directives Dimensions (W x H x D): 85mm x 85mm x 38mm Comes with a 5 Year Warranty User Manual

Expert Electrical

TimeGuard FST24 24 Hour Fused Spur Time Switch
