Timeguard Boostmaster 4 Hour Electronic Boost Timer (2019 Model)

Electrical World

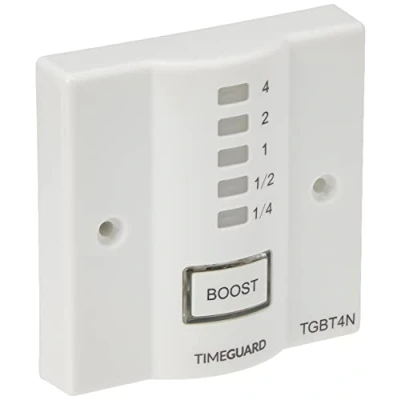

Timeguard TGBT4N Boostmaster 4 Hour Electronic Boost Timer The TGBT4N is a boost timer for immersion, room heaters, towel rails and lighting. Simply press the button to increase the ON time for up to 4 hours. 13A (3kW) loading. Easy to use push-button control. Power status LED indicator illuminates boost button ON time can be increased in 5 steps: 0.25, 0.50, 1, 2, and 4 hours Fits standard flush or surface mount boxes min 25mm deep Technical Specification Timer Mode: Boost Contact Type: Normally Open Setting Type: Digital Operating Voltage: 230V 50Hz Switch Rating 230V AC: 13A Resistive (3kW), 1000W Filament lighting, 500W Fluorescent lighting, 100W CFL or LED lighting Operating Temperature: 0 to 45°C Cable Connection: 1.5 x 2.5mm Flexible Cable EC Directives: Conforms to Latest Directives Dimensions: Width 85mm, Height 85mm, Depth 31mm Comes with a 3 Year Guarantee User Manual

Amazon

Automatic timer countdown selection for up to 4 hours in quarter hour steps Typical applications such as immersion heaters, room heaters, towel rails and lighting Fits a standard flush or surface mount BS wall box min. 25mm deep. Optional flex outlet located underside left hand side Maximum load 3000 watts (resistive), 1000 watts (filament), 500W fluorescent, 100W CFL or LED. CE approved Dimensions: 87mm wide x 87mm high x 22mm deep. 10mm rear projection, Weight: 0.330693393 pounds, Manufacturer: Timeguard

Expert Electrical

TimeGuard TGBT4N Boostmaster 2 Hour Electronic Boost Timer
