Trend Collet Extension with 12mm Shank & 8mm Collet, 50mm Spindle Increase for Router Tables, CE/128

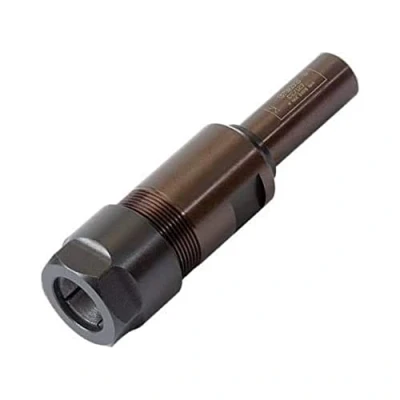

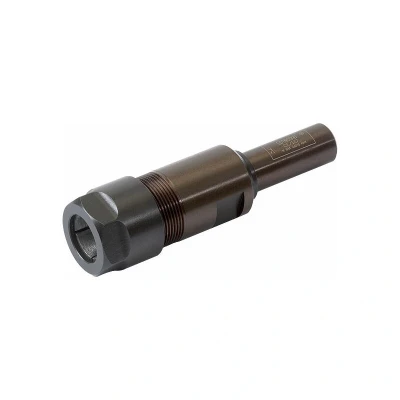

This collet extension is designed for router tables where cutter shank lengths are limited. It increases the cutter spindle length by 50 mm, enhancing reach for routing tasks. The unit features a 12 mm shank and an 8 mm collet, housed in a precision machined one-piece steel body for durability. It operates at a maximum speed of 18,000 RPM and supports a maximum tool diameter of 50 mm with a maximum tool cut length of 30 mm. The package includes the extension body, a collet nut, and an 8 mm collet, and installation requires 19 mm and 22 mm A/F spanners. The extension can be expanded with accessory collet and nut sets for different shank diameters, making it a versatile addition to your toolset.

Overview

The collet extension is built for router tables with limited cutter shank lengths. It provides an extra 50 mm of spindle length in a robust, one-piece steel body, enabling greater versatility in routing applications. With a 12 mm shank and 8 mm collet, it is designed to accommodate tools up to 50 mm in diameter and 30 mm in cut length, and to run at up to 18,000 RPM. The package includes the extension body, a collet nut, and an 8 mm collet, and requires 19 mm and 22 mm A/F spanners for installation.

Features

• Increases spindle length by 50 mm

Specifications

• Shank: 12 mm
• Collet: 8 mm
• Overall length: 72 mm
• Max speed: 18000 RPM
• Max tool diameter: 50 mm
• Max tool cut length: 30 mm
