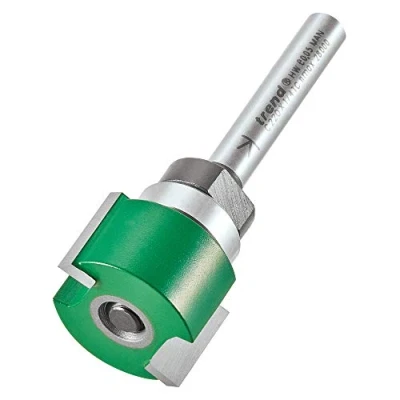

Trend CraftPro Two Flute Intumescent Recessing Router Cutter Bit, 1/4 Inch Shank, 24mm Cut Diameter & 15mm Length, Tungsten Carbide Tipped, C220X1/4TC

ManoMano

General description This router cutter is designed for cutting precise slots into door edges and frames to accommodate intumescent strips, ensuring compliance with fire safety regulations. It provides clean, accurate cuts for flush fitting of fire-resistant strips, enhancing safety and aesthetics. Technical specifications Diameter: 24mm Cutting Depth: 15mm Bearing Diameter: 16mm Shank Size: 1/4 inch PTFE coating to reduce heat and resin build-up, increasing cutter performance and lifespan. Compatibility and accessories Compatible with standard routers that accept 1/4 inch shank cutters. Includes a bearing guide to ensure accurate depth and width of cuts. Installation Insert the cutter into the router collet, ensuring it is securely tightened. Adjust the depth setting to 15mm using the bearing guide for precise cuts. Usage Use for cutting slots in door edges and frames for intumescent strips. Ensure the router is stable and operate at appropriate speed for clean cuts. Follow safety

Amazon

INTUMESCENT STRIP RECESS TOOL: Designed to accommodate intumescent strips in doors and frames, this specialised tool creates recesses. The recesses enable strip expansion during high temperatures, ensuring fire resistance and reducing flame and smoke propagation. TUNGSTEN CARBIDE TIPPED: 2.0mm micro-granular extra-hard tips for prolonged sharpness and cutter durability. Ideal for cutting softwood, hardwood, and man-made timber boards. PTFE NON-STICK COATING: Its PTFE non-stick coating reduces friction, minimises resin build-up and extends the cutter's lifespan for uninterrupted router performance. PRECISION CUTTING: The highly ground tip face is polished to 800-grit to ensure accurate cutting with a fine finish for professional routing results. SAFETY & COMPATIBILITY: Longer shanks accommodate both handheld and table routers. Features a Safety K-Mark for optimal shank positioning. EN Shank Markings for visible cutter safety data.

Power Tools Direct

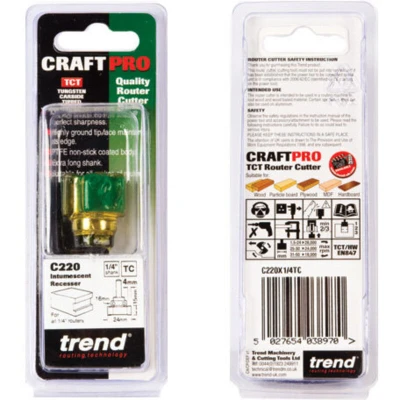

Trend CraftPro Intumescent Strip Cutter cuts the perfect sized slot into door edges and door frames for fast perfectly flush fitting of intumescent strip. A bearing guide ensures the correct depth and width is always achieved to meet Fire Regulations. PTFE coating to minimise heat and resin build-up for increased cutter performance and longevity. All Trend router cutters also have a safety ‘K’ mark insertion indicator on each shank to ensure a quick and easy set up whether for handheld or table work.Trend C220 x 1/4 TCT Intumescent Cutter to suit 4mm thick strip of 15mm width. Specification: Diameter: 24mmCutting Depth: 15mmBearing: 16mmShank: 1/4inPTDTREC220
