Trend Intumescent Cutter 10mm x 40mm

INTUMESCENT STRIP RECESS TOOL: Designed to accommodate intumescent strips in doors and frames, this specialised tool creates recesses. The recesses enable strip expansion during high temperatures, ensuring fire resistance and reducing flame and smoke propagation. TUNGSTEN CARBIDE TIPPED: 2.0mm micro-granular extra-hard tips for prolonged sharpness and cutter durability. Ideal for cutting softwood, hardwood, and man-made timber boards. PTFE NON-STICK COATING: Its PTFE non-stick coating reduces friction, minimises resin build-up and extends the cutter's lifespan for uninterrupted router performance. PRECISION CUTTING: The highly ground tip face is polished to 800-grit to ensure accurate cutting with a fine finish for professional routing results. SAFETY & COMPATIBILITY: Longer shanks accommodate both handheld and table routers. Features a Safety K-Mark for optimal shank positioning. EN Shank Markings for visible cutter safety data.

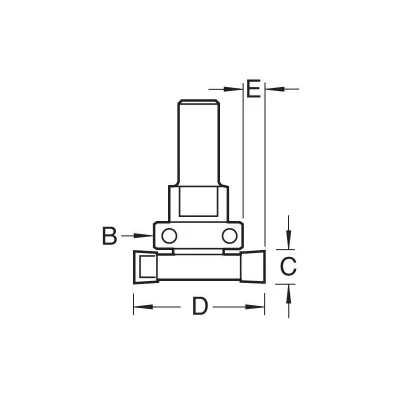

General description For either frame or door applications, this TREND C208X1/2 Intumescent Cutter Set is designed to work with standard Intumescent Strip. It neatly cuts grooves on doors or frames to accept the Intumescent Strip, forming effective barriers to both fire and smoke. By using alternative ball bearing diameters, other seal thicknesses can be introduced, and alternative bearings can be purchased to suit different thicknesses. Technical specifications Dimensions: D=40 mm C=10 mm B=32 mm E=4 mm Shank Diameter: 1/2 inch Grade: TCT Diameter Metric: 40 mm Cut Length Metric: 10 mm Bearing Diameter Metric: 32 mm
