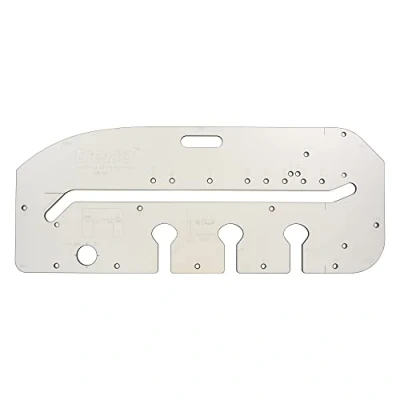

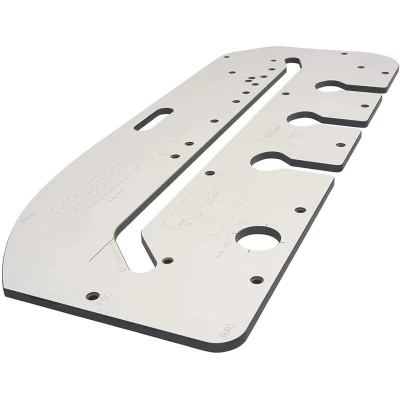

Trend Kitchen Worktop Jig for Precise Joints, Router Laminate, Solid Timber and Composite Worktops, 700mm, KWJ700

Power Tools Direct

Trade Work Top Jig For Up To 700Mm Worktops.Hard Wearing Cnc Machined Compact Grade High Pressure Laminate 12Mm Thick Jig That Cuts Both Parts Of The Joint In 15 Minutes Including Setting Up. Left Hand And Right Hand Corners 400Mm Radius Peninsular Joint 45 Degree End Cut With Slight Radius 45 Degree Trade Corner Solution For Hob Units 100Mm Radius Corner 40Mm Radius Corner 35Mm Kitchen Door Hole And 3/4Inch Bsp Hole For Mixer Taps.Fixed Lengths For 250Mm 300Mm 400Mm 500Mm 550Mm 600Mm 616Mm 635Mm. 650Mm And 700Mm Wide Worktops. Cuts Up To 40Mm Thick Worktops With Or Without Anti-Drip Postformed Edge.Three Open-Ended Bolt Recesses (Dog Bone Style) For 150Mm Bolts. Engraved Lines For Short 65Mm Bolts And Worktop Cross-Cut.10Mm Diameter Plastic Pins With Tapered Shoulder For Tight Fit Provides Three Point Pin Contact To Ensure Ease Of Setting Up.Engraved Markings For Identification Of Pin Holes.Pins Made From Abs Plastic For Strength.Jig Requires:A Portable Plunge Router With 12.7Mm (1/2 Inch) Shank Capacity And Minimum 1300 Watts.A Template Guide Bush With 30Mm Outside Diameter Ref. Gb30.A Tct Router Cutter With 12.7Mm (1/2 Inch) Diameter And 50Mm (2 Inch) Cut Length.Two Clamps.PTDTREDIRKWJ700

ManoMano

General description The Trend KWJ700 Kitchen Worktop Jig is a robust and durable tool designed for cutting worktops up to 700mm wide. Made from hard-wearing solid laminate, this 12mm thick jig allows you to cut both parts of the joint in just 15 minutes, including setup time. It features various corner solutions and is suitable for a range of worktop thicknesses. Technical specifications Length: 985mm Width: 390mm Thickness: 12mm Weight: 5.4kg End Cut: 45° Corner Radii: 40mm, 100mm, 400mm Corner Mitre Joint: 45° Female cut material width loss: 35mm Compatibility and accessories The jig requires the following tools for operation: A portable plunge router with 12.7mm (1/2 inch) shank capacity and a minimum of 1300 watts A template guide bush with a 30mm outside diameter A TCT router cutter with 12.7mm (1/2 inch) diameter and 50mm (2 inch) cut length Two clamps Usage This jig is designed for cutting various worktop configurations, including: Left hand and right hand corners 400mm radius

Amazon

ACCURATE WORKTOP JOINT: The Trend Kitchen Worktop Jig allows for precise and tight fitting joints on kitchen and bathroom worksurfaces, ensuring a professional finish SUITABLE FOR VARIOUS WORKTOP MATERIALS: Made from 12mm solid laminate, suitable for use on laminate, solid timber, and composite worktops, providing project versatility COMPATIBLE WITH 1/2" ROUTER: This jig requires a suitable 1/2" collet capacity router fitted with a 1/2" diameter router bit cutter and 30mm guide bush SIMPLE JIG ALIGNMENT SYSTEM: Features an easy-to-follow alignment pin system, etched instructions, indicators and instruction manual for precise and accurate cuts COMMON WORKTOP WIDTHS: Compatible with common worktop widths of 250mm, 300mm, 400mm, 500mm, 550mm, 600mm, 616mm, 635mm, 650mm, and 700mm, Weight: 12.79 pounds, Manufacturer: Trend
