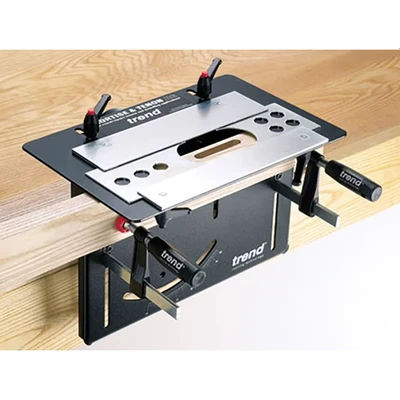

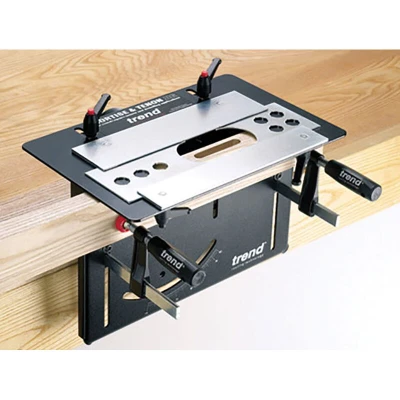

Trend Mortice & Tenon Jig MT/JIG TREMTJIG

Amazon

Ideal for use with comaptible routers including T4, T5, T10 and T11. A unibase may be required for certain makes and models of router. Jig enables mortice and tenons and dowel joints to be cut using a router. Ideal for use with cabinet, chair and table construction. CNC precision manufactured plates and body, easy one time set up for both mortise and tenon to give perfectly fitting joints every time. Cuts mortise and tenon sizes of 1/4" (6.35mm). To 5/8" (15.9mm). Tenons are cut with a 5/8" (15.9mm) diameter straight cutter (Ref C026). The width of the tenon is adjusted by using different guide bush diameters. Specifications :- Material thickness min 12mm, Material thickness max 47mm, Tenon thickness min 4.8mm, Tenon thickness max 16mm, Tenon width max.Using vertical guide 90mm, Tenon length max approx 25mm, Mortise length max.Using vertical guide 90mm. Angle tilt compound -10 degrees to 45 degrees., Weight: 6.5 pounds, Manufacturer: Trend

ManoMano

General description The Trend Mortice & Tenon Jig MT/JIG allows for the precise cutting of mortice, tenons, and dowel joints using a router. It is perfect for creating joints in cabinets, chairs, and tables. The jig features a one set-up system for both mortice and tenon, ensuring perfectly fitting joints, and is fully adjustable for compound angle joints up to 45º. The reversible templates enable the production of both round and square end tenons, as well as accurate dowelling applications. Technical specifications Mortice and tenon sizes: 1/4in (6.35mm) to 5/8in (15.9mm) Material Thickness: 12 - 47mm Tenon Thickness: 4.8 - 16mm Angle Tilt Compound: -10º to 45º Compatibility and accessories A Unibase may be required for certain makes and models of router Guide bushes are included Cutters are required (5/8 inch diameter straight cutter, Ref. C026) Other information International PCT Appl N.CNC precision manufactured plates and body
