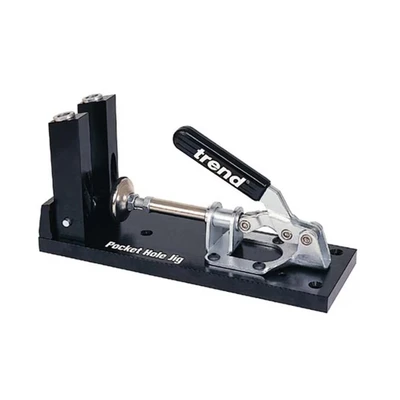

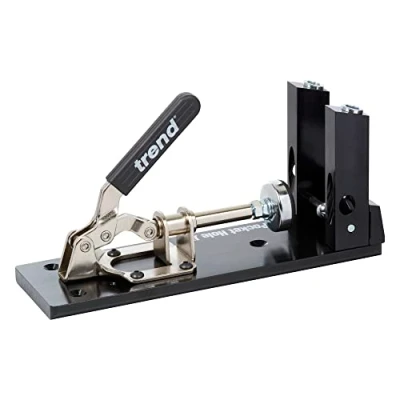

Trend Pocket Hole Jig Kit with Dual Column Jig, Face Clamp, HSS Drill Bit & Depth Setting Collar, 2 Square Drives 100 Screws, PH/JIG

The Trend PH/JIG Pocket Hole Jig offers a revolutionary solution for woodworking enthusiasts and professionals alike, enabling fast and accurate joining of timber and plywood. This tool is perfect for a wide array of projects, from face framing and cabinet construction to fixing aprons to table legs, creating mitred frames, and forming angled joints.

Efficient Design

This pocket hole jig features solid hardened bushes with a variable pitch ranging from 29mm to 63mm, accommodating material thicknesses between 16mm and 38mm. It can work effortlessly with a variety of materials, including timber, MDF, plywood, and blockboard. The jig also allows for the creation of diverse joints individually, catering to the specific requirements of each project.

User-Friendly

Designed with simplicity in mind, the Trend pocket hole jig is exceptionally quick and easy to use. There’s no requirement for complex measuring or intricate math skills, which makes it an ideal tool for novices, hobbyists, and seasoned professionals. By eliminating the need for clamps, this jig saves valuable time and streamlines the assembly process. Once glued and screwed, the workpiece is ready to be handled immediately, ensuring that you can keep your projects moving efficiently.

Robust and Reliable Construction

Constructed with all-metal components, the pocket hole jig promises strength and durability. Its adjustable twin drill guides are fitted with hardened bushing sleeves that ensure consistent and accurate screwed joints. This reliability is crucial for achieving high-quality results in all your woodworking projects.

Included Accessories

The Trend PH/JIG comes with a comprehensive set of accessories to enhance its functionality. The package includes the Dual Column Pocket Hole Jig, a Face Clamp, 100 dome-headed square bit screws, a high-speed steel drill bit with a depth setting collar, and two square drive bits. With these features and tools, you’re fully equipped to tackle a variety of woodworking tasks right out of the box.

Specifications

- Material thickness min: 16 mm

- Material thickness max: 38 mm

- Material width min: 38 mm

- Hole pitch: 29 mm - 63 mm

- Drill diameter: 9.5 mm

- Square drive bit size: No.2

- Screw sizes: No.7 x 30 mm

- Weight: 3.83 pounds

The Trend PH/JIG Pocket Hole Jig stands out as an essential tool for anyone looking to enhance their woodworking capabilities. Combining fast assembly, robust construction, and user-friendly operation, it is designed to meet the needs of both casual creators and dedicated craftsmen alike.
