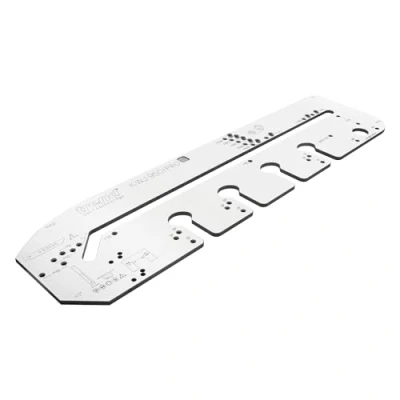

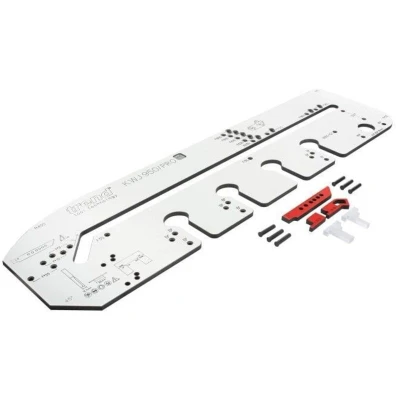

Trend Professional Multi Material Kitchen Worktop Jig for Mason Mitre Joints, Up to 950mm Countertops, Front Edge Alignment, KWJ950/PRO

Amazon

FRONT EDGE ALIGNMENT TECHNOLOGY: Replaces traditional setup pins for direct positioning at the start of the mitre joint, accommodating any worktop width up to 950mm, perfect for custom or out-of-square installations PRECISE INSET CREATION: Features Narrow Inset T-Gauges combined with the Front Edge Alignment Device to quickly and accurately create 3mm and 10mm insets, enhancing the finish on square-edged and bullnose worktops while improving tool efficiency and runtime MALE CUT-LINE POSITIONING: Simplifies complex setups by allowing direct positioning to the male cut line, removing the need for intricate measurements, ideal for ensuring accuracy in trapped and irregular installations STANDARD AND SPECIALISED BACKSETS: Offers indexed backsets for worktop widths including 600, 610, 616, 620, 635, 700, 900, and 950mm, ensuring rapid and precise alignment for standard 90º and complex cuts VERSATILE FIXING AND FINISHING OPTIONS: Accommodates all standard worktop bolt sizes, including Zipbolt and Unika Slimline, and includes essential cutting radii and angles for breakfast bars, peninsulas, and edge finishing, Weight: 6644.0 grams, Manufacturer: Trend

ManoMano

General description A universal worktop jig designed for routing mitre joints in laminated, timber, and compact laminate surfaces. The Trend KWJ950/PRO features innovative front edge alignment technology, making it ideal for scribed, out-of-square, and non-standard worktops. Technical specifications Length: 1260 mm Width: 340 mm Thickness: 12 mm Weight: 7.4 kg Insets: 3 mm, 10 mm, 35 mm Backsets: 600 mm, 610 mm, 616 mm, 620 mm, 635 mm, 700 mm, 900 mm, 950 mm Bolt Recesses: 4 Bolt Recess Centres: 175 mm Corner Radius: 40 mm, 100 mm Peninsular Radius: 400 mm Requires: Guide Bush 30 mm, Router Cutter 12.7 mm dia. x 50 mm length, Plunge Router, 1/2 inch F-Clamps min., 80 mm throat x 2 Compatibility and accessories Accommodates all standard worktop bolt sizes, including Zipbolt and Unika ‘Slimline’ connection bolts. Usage Perfect for square-edged and modern bullnose worktops. Narrow insets provide a cleaner aesthetic, reduce cutter wear, and enhance cordless router runtime. Male Cut-Line
