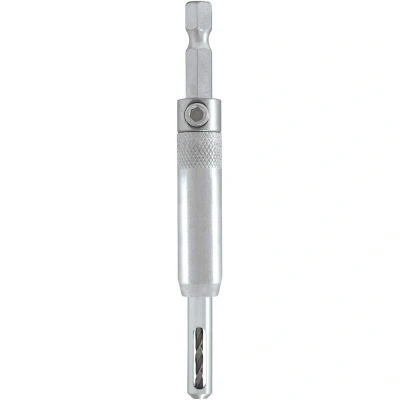

Trend Snappy HSS 2mm Self Centring Drill Bit & Guide for Precision Pilot Hole Drilling, Quick Release, SNAP/DBG/5

General description This self-centering drill guide is designed for accurate drilling of pilot holes for fittings such as hinges, ensuring perfect alignment. It features a spring-loaded mechanism for ease of use and can be easily dismantled for cleaning. Supplied with a high-speed steel (HSS) drill bit, it is suitable for both soft and hard woods, making it ideal for precise woodworking and home improvement projects. Technical specifications Part Number: SNAP/DBG/5 Barcode: 5027654512609 Diameter: 2 mm (5/64 inch) Shank Diameter: 1/4 inch hex Screw size compatibility: No.6 (3.5 mm) Sprung barrel diameter: 6.2 mm Compatibility and accessories Compatible with Trend Snappy chucks Supplied with a HSS drill bit for precise drilling Installation Attach the guide to your drill chuck by fitting the 1/4 inch hex shank Ensure the guide is properly positioned for the desired hole location Usage Position the guide on the workpiece where the pilot hole is needed Press the bevelled nose against the
