Trend UNI/CS TC Universal Countersink

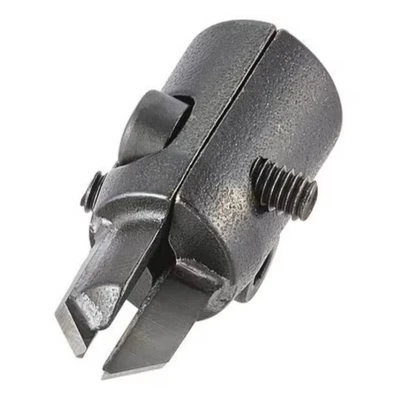

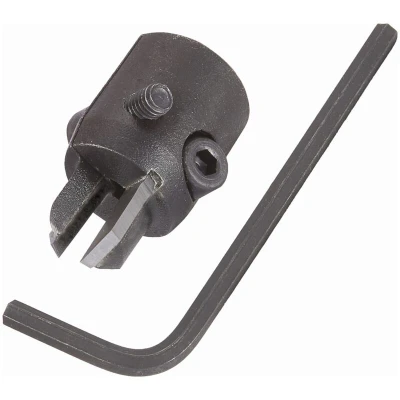

General description Trend UNI/CS Countersink is a shell style 90º countersink made from high-grade carbon steel, designed to deliver a clean cut finish thanks to its multi-tooth deep ground gullets. It is specifically recommended for use on wood and man-made boards, and can also function as a non-cutting depth stop when reversed on the drill. Please note that drills are not included with the countersink. Technical specifications Cutting Diameter: 12 mm Overall Length: 32 mm Angle: 45 degrees Compatible Drill Diameter: 3 mm to 7.2 mm Manufacturer Part Number (MPN): UNI/CS EAN: 5027654021064 Installation The drill passes through the body of the countersink and is secured by two hexagon bolts. Ensure the flutes of the drill are aligned with the flutes of the countersink. Do not overtighten the screws when securing the countersink. Usage Recommended for wood and man-made boards. Can be used as a non-cutting depth stop by reversing the countersink on the drill. Not suitable for abrasive
