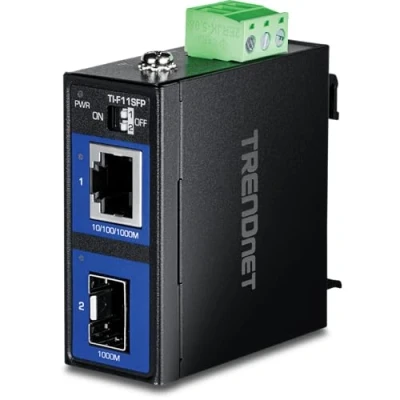

Trendnet TI F11SFP network media converter converters (1000Base T, IEEE 802.3u, 802.3, Gigabit, Wired, 40 75 C, Full, Half)

Trendnet Ti-f11sfp Transceiver. TRENDnet´s TI-F11SFP is a robust 100/1000 Mbps industrial media converter. It handles extreme environments with an IP30 metal enclosure and -40 to 75°C operating temperatures, plus shock and vibration resistance. Configure speeds, auto-negotiation, and Link Fault Pass Through with DIP switches. Dual redundant power inputs ensure zero downtime. Features include PoE/PoE+ up to 30W per port, a 2 Gbps switching capacity, and Jumbo Frame support for enhanced performance. Perfect for demanding industrial applications. TRENDnet´s TI-F11SFP is a reliable IP30 rated 100/1000 Base-T to SFP media converter with hardened components rated for extreme industrial environments.Set 100 or 1000 Mbps throughput speeds, Auto Negotiation, and Link Fault Pass Through (LFP) using the front panel dip switches.Dual redundant power inputs (power supply sold separately:TI-M6024) with overload current protection support zero downtime applications.Features:Network Ports:- Supplies up to 30 Watts of PoE/PoE+ power per port (802.3at/802.3af) with an up to 200 Watt PoE power budget Switching Capacity:- 2 Gbps switching capacity Electro Magnetic Compliance:- Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards Grounding Point:- Grounding point protects equipment from external electrical surges Dip Switches:- Dip Switch 1:100 or 1,000 Mbps throughput speeds.- Dip Switch 2:Enable/disable port Auto-Negotiation.- Dip Switch 3:Converter or Switch mode.- Dip Switch 4:Enable/disable Link Fault PassThrough (LFP) support Jumbo Frame:- Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance Certifications:- Rated for information technology (ITE) equipment (EN55022/24) and industrial, scientific, and medical (ISM) Equipment (EN55011) DIN-Rail/Wall Mounts:- IP30 rated metal enclosure with included DIN-rail and wall mount hardware Extreme Temperatures:- Hardened converter is rated for an operating temperature range of -40 to 75 ºC (-40 to 167 ºF) Shock and Vibration Resistant:- Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6).Specifications:Standards:- IEEE 802.3.- IEEE 802.3u.- IEEE 802.3ab.- IEEE 802.3z.- IEEE 802.3x Device Interface:- 1 x Gigabit port.- 1 x Gigabit SFP slot.- 4-pin removable terminal block.- LED indicators.- DIP Switch.- DIN-Rail mount.- Wall mount.- Grounding point Data Transfer Rate:- Ethernet:10 Mbps (half duplex), 20 Mbps (full duplex).- Fast Ethernet:100 Mbps (half duplex), 200 Mbps (full duplex).- Gigabit:2000 Mbps (full duplex).Performance:- Data RAM Buffer:1024 KB.- Jumbo Frame:9 KB Special.Features:- Hardened components rated for extreme temperatures.- Dual redundant power inputs.- Auto-Negotiation.- Auto store and forward architecture.- Automatic address learning and address aging.- ESD 8 KV and Surge 6 KV protection Power:- Input:12.- 56 V DC or 18.- 36 V AC.- Compatible power supply:TI-M6024 (sold separately).- Consumption:Max.3 Watts Terminal Block:- Redundant power inputs, 4 pin.- Wire range:0.34 mm^2 to 2.5 mm^2.- Solid wire (AWG):12-24/14-22.- Stranded wire (AWG):12-24/14-22.- Torque:5 lb.- In / 0.5 Nm / 0.56 Nm.- Wire strip length:7-8 mm DIP Switch:- Set SFP speed to 100 Mbps or 1000 Mbps.- Enable or disable auto-negotiation on SFP port.- Set to switch or pass through mode.- Turns LFP (Link Fault Pass Through) on or off.- MTBF:510,304 hours Housing:- IP30 metal case.- DIN-rail mount.- Wall mount.- Grounding point.- 8 KV ESD protection.- 6 KV surge protection.- Operating Temperature:- 40 to 75 °C (-40 to 167 °F).- Operating Humidity:Max.95 % non-condensing.- Dimensions:113 x 82 x 31 mm (4.4 x 3.2 x 1.2 in.).- Weight:152 g (5.4 oz.). tradeinn Techinn

Hardened IP30 rated 100/1000 Base-T Ethernet to SFP converter SFP port accommodates Multi or Single Mode fiber Up to 80 km fiber networking distances with the TEG-MGBS80 SFP module Includes DIN-rail and wall mounts Extreme -40 to 75 C (-40 to 167 F) operating temperature range.Dual redundant power inputs with overload current protection.Powers supply sold separately (model TI-M6024)
