Ultra Small GPIO Terminal Block Breakout Board Module for Arduino UNO R3

Name: Ultra Small GPIO Terminal Block Breakout Board Module for Arduino UNO R3
Brand: OONO
SKU: b2b76c8f981ab32c4dcf72bc5ae9823c

1/1

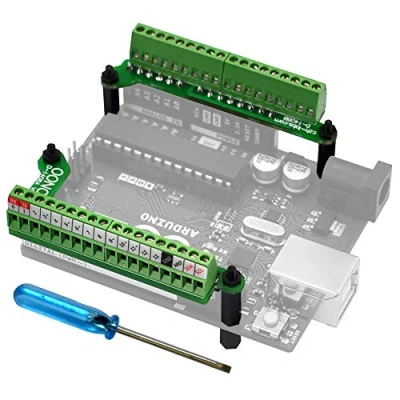

Image of Ultra Small GPIO Terminal Block Breakout Board Module for Arduino UNO R3

Amazon

Prices from

15.16

Featured

	£ 15.16	To Shop
	£ 15.16	To Shop
COMPARE ALL WEBSHOPS (2)

Description

Amazon The item has been soldered and assembled. Support for Arduino Uno R3. Terminal block pitch 2.54mm/0.1", wire size range 28AWG to 18AWG, strip length 4.5mm, screw M1.6 steel, pin header and cage copper. FR-4 fiber glass PCB, dual copper layers. Pin header connect to Arduino board. The breakout board is firmly fixed to Arduino-Uno through standoffs and nut, and will not shake. Packing list: 2x(1 set, A and B each one) terminal block breakout modules, 4x 11mm nylon standoffs. 4x 6mm nylon standoffs. 4x nylon nuts, 1x small slotted screwdriver (NOTE: the item not include Arduino Uno module).

Compare webshops (2)

Shop

Price

£ 15.16

To Shop

£ 15.16

To Shop

Description (1)

The item has been soldered and assembled. Support for Arduino Uno R3. Terminal block pitch 2.54mm/0.1", wire size range 28AWG to 18AWG, strip length 4.5mm, screw M1.6 steel, pin header and cage copper. FR-4 fiber glass PCB, dual copper layers. Pin header connect to Arduino board. The breakout board is firmly fixed to Arduino-Uno through standoffs and nut, and will not shake. Packing list: 2x(1 set, A and B each one) terminal block breakout modules, 4x 11mm nylon standoffs. 4x 6mm nylon standoffs. 4x nylon nuts, 1x small slotted screwdriver (NOTE: the item not include Arduino Uno module).
