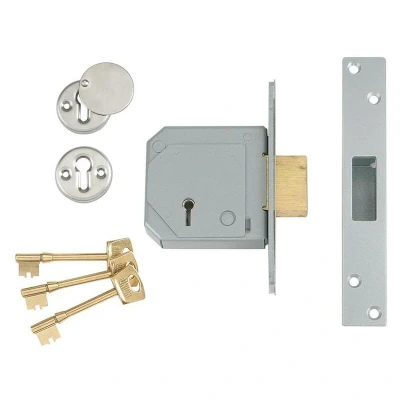

Union Locks 3G114E 5 Lever Mortice Deadlock C Series 80mm Case Satin Chrome

The Union 3G114 C-Series BS 5 Lever Mortice Deadlocks are suitable for use on timber doors hinged on the left or right with the keys being suitable for use on doors up to 50mm thick. The lock has a deadbolt operation and is locked or unlocked by key from either side. It has force resistant anti drill anti-pick and anti-saw security features and is available with square forend and striking plate with a 20mm bolt throw. The 3G114 mortice deadlocks are supplied with one plain escutcheon and one escutcheon with a cover plate finished to match the faceplate/strike. The 3G114 series locks are recommended by insurance companies kitemarked to BS3621: 2007. Case: Silver powder coatBox Strike Assembly: Painted to match forendDeadbolt: Brass with hardened steel rollersKeys supplied: Standard differ supplied with 2 keys. For locks to pass please specify number of keys required.Key Blank Number: B-K722Cut Key Number: B-5LCNB Not suitable for master keyingRebate Kit: B-3G114R (13mm 19mm and 25mm) EN1634-1 assessed for use on 60 minute timber fire doors A deadlock has a single deadbolt which is locked or unlocked and locked by means of a key from either side whereas a sashlock has both a deadbolt and a latch which is operated from either side by a lever handles. The security level of mortice deadlocks or sashlocks ranges from 2-5 levers. The higher the number of levers the more secure the lock is.Visi packed.Forend Finish: Satin Chrome Case Size: 80mm x 77mm (3in) Backset: 53mm This is the measurement from the edge of the door to the centre of the keyhole.PTDUNNV3G114C80

General description The UNION V-3G114E-SC-80 3G114E 5 Lever Mortice Deadlock is designed for timber doors, providing robust security with its deadbolt operation. This lock is suitable for doors hinged on either side and can accommodate doors up to 50mm thick. It features a satin chrome finish and is equipped with advanced security features to resist forced entry. Technical specifications Forend Finish: Satin Chrome Case Size: 80mm x 77mm (3in) Backset: 53mm Deadbolt: Brass with hardened steel rollers Keys supplied: Standard differ with 2 keys Key Blank Number: B-K722 Cut Key Number: B-5LC Rebate Kit: B-3G114R (13mm, 19mm and 25mm) Security Level: 5 levers Compatibility and accessories Recommended for use on timber doors Not suitable for master keying Available rebate kit for different door thicknesses Installation Locks are installed with a deadbolt that is locked or unlocked by key from either side Usage Ideal for securing timber doors in residential or commercial settings
