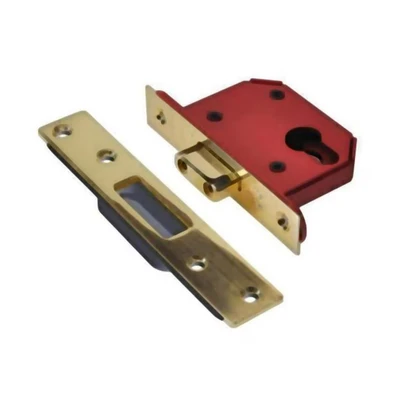

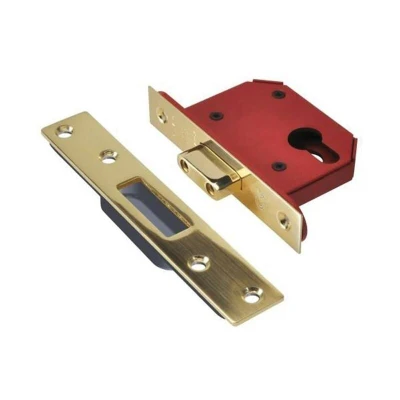

UNION UNNJL21EPB30 Mortice Deadlocks Euro Cylinder

The Union 21EU StrongBOLT Euro Profile Deadlock is ideal for timber doors hinged on the left or right and they are suitable for doors up to 54mm thick. The 14mm deadbolt is locked or unlocked by the key from either side and gives a secure positive deadlocking. The 21EU deadlock has hardened steel pins that provide resistance against attack from sawing. The chamfered bolt design increases the performance of the lock under side load testing. The radius plastic splinter guard allows ease of installation. The deadbolt can be installed into many UK mortices without the need for additional carpentry or spoiling the edge of the door. Striking Plate: Finished to match forend.Face Plate: Supplied with square face plate which covers a radius inner forend.Case: Steel red powder coated.Deadbolt: Brass with hardened steel rollers.Rebate Kit: 2100REB 13mm or 26mm. Forend: Brass finish.Case Size: 81mm x 89mm (3in).Backset: 57mm. This is the measurement from the edge of the door to the centre of the keyhole.PTDUNNJL21EPB30

General description The Union 21EU StrongBOLT Euro Profile Deadlock is designed for timber doors hinged on either side, accommodating doors up to 54mm thick. It features a 14mm deadbolt that can be locked or unlocked with a key from both sides, ensuring secure deadlocking. The lock is equipped with hardened steel pins for resistance against sawing attacks and a chamfered bolt design that enhances performance under side load testing. The radius plastic splinter guard facilitates easy installation, allowing the deadbolt to be fitted into many UK mortices without additional carpentry or damaging the door edge. Technical specifications Case size: 81mm x 89mm (3 inches) Backset: 57mm (distance from door edge to keyhole center) Rebate kit options: 13mm or 26mm (model 2100REB) Finish: Polished Brass Material: Steel case with red powder coating Deadbolt: Brass with hardened steel rollers Compatibility and accessories Compatible with timber doors up to 54mm thick Supplied with a square
