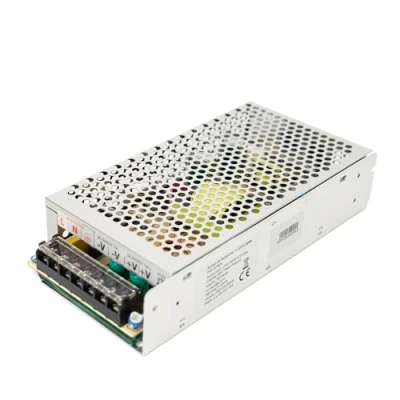

Universal Regulated Switching Power Supply PNI ST10A AC 110V/230V to 12V 10A DC for CCTV systems

Pni St10a Source Voltage Switching 10a 12v. Switching voltage source.Applications:- The PNI ST10A voltage source can be used in access control systems, video surveillance systems or in any application with less than 10A power consumption.Entry:- The PNI ST10A voltage source is supplied to the normal electricity grid with a voltage of 220V.Output:- PNI ST10A has a 12V output and a maximum capacity of 10A.Physical Features:- The motherboard of the voltage source is protected by a shock-resistant metal housing. Due to its small size it can be easily mounted and hidden in a connection box. It has the dimensions: 160x98x40 mm.Specifications:- Input voltage: 180-240V AC- Input signal frequency: 50-60Hz- Output voltage: 2 x 12V- Output current: 10A (peak)- Output power: 120W- Efficiency: 79%- Overload protection: From 105% to 115%- Short circuit protection: Yes- Cooling fan: - Operating temperature: -26 ° C ~ + 60 ° C- Dimensions (D x H x W) / Weight: 160x98x40 mm / 324 gThe package contains:- Power source: Yes. tradeinn Bricoinn

The PNI ST10A voltage source can be used in access control systems, video surveillance systems or in any application with less than 10A power consumption. The PNI ST10A voltage source is supplied to the normal electricity grid with a voltage of 220V. The base plate of the voltage source is protected by a metal casing that is shock resistant. Due to its small size it can be easily mounted and hidden in a connection box. It has the dimensions: 160x98x40 mm.
