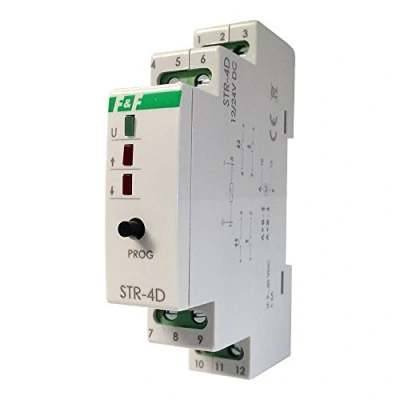

Universal Roller Blind Relay for Drives 12 V/24 V DC Driver Shutter STR 4D 12/24V F&F 7971

Universal roller shutter roller blind relay for drives 12V/24V DC driver roller shutter driver STR-4D 12/24V DC F&F 7971 English user manual. ! Universal roller shutter relay for drives 12 V/24 V DC. Operating voltage: 10 ÷ 27 V DC; contact (AC-1): 8 A; max. Load (AC-3): 320 W (1.5 A); power consumption working at least 0.15 W; < 0.6 W Programmable switch-on time: from 1 second to 15 minutes. Connection: screw terminals 2.5 mm²; working temperature: -15 ÷ 50°C; connection: screw terminals 2.5 mm²; dimensions: 1 module (18 mm); mounting: TH-35; protection class: IP20
