Vecys SMA to MCX Adapter kit 4 type for Antenna 4G LTE WIFI WLAN Wireless GPS System
|
£ 7.99 | To Shop |
Description
Amazon

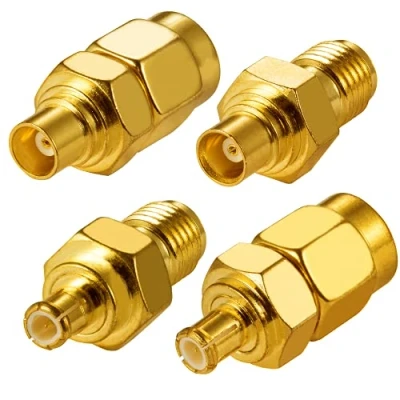

Product name: SMA to MCX 50 ohm RF coaxial adapter kit 4 types; Adapter type: Adapter 1: SMA male to MCX male adapter | Adapter 2: SMA male to MCX female adapter | Adapter 3: SMA female to MCX male adapter | Adapter 4: SMA female to MCX female adapter; Shell material: Brass | Inner conductor material: Brass gold plated | Body style: Straight; Parameters: Impedance: 50 ohm | Insulator: PTFE | VSWR: ≤1.2 | Frequency Range: 0~3GHZ | Withstand voltage: 1000V rms | Insulation resistance ≥ 5000 MΩ | Center contact resistance: ≤ 3 mΩ | Outer contact resistance: ≤ 2 mΩ | Temperature range: -45～125°C | Insertion loss ≤0.15 dB/6GHz | Working Voltage: ≤ 335V | Vibration MIL-STD-202, method 213 | Durability: ≥500 cycles; Package: 1 x SMA male to MCX male adapter, 1 x SMA male to MCX female adapter, 1 x SMA female to MCX male adapter, 1 x SMA female to MCX female adapter | Net: 17.7g.
Compare webshops (1)
Description
(1)
Product name: SMA to MCX 50 ohm RF coaxial adapter kit 4 types; Adapter type: Adapter 1: SMA male to MCX male adapter | Adapter 2: SMA male to MCX female adapter | Adapter 3: SMA female to MCX male adapter | Adapter 4: SMA female to MCX female adapter; Shell material: Brass | Inner conductor material: Brass gold plated | Body style: Straight; Parameters: Impedance: 50 ohm | Insulator: PTFE | VSWR: ≤1.2 | Frequency Range: 0~3GHZ | Withstand voltage: 1000V rms | Insulation resistance ≥ 5000 MΩ | Center contact resistance: ≤ 3 mΩ | Outer contact resistance: ≤ 2 mΩ | Temperature range: -45～125°C | Insertion loss ≤0.15 dB/6GHz | Working Voltage: ≤ 335V | Vibration MIL-STD-202, method 213 | Durability: ≥500 cycles; Package: 1 x SMA male to MCX male adapter, 1 x SMA male to MCX female adapter, 1 x SMA female to MCX male adapter, 1 x SMA female to MCX female adapter | Net: 17.7g.
