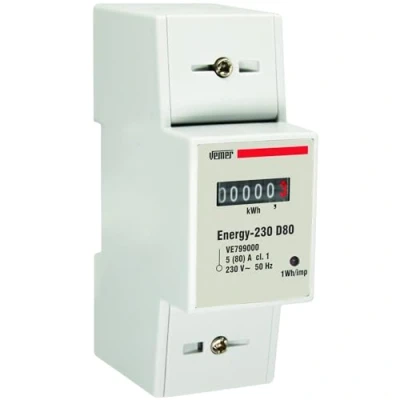

VEMER VE799000 Energy 230 D80 Single Phase Electric Meter for DIN Bar 2 Modules, Consumption Meter, Maximum Measurable Current 80A, Power Supply 230V, White

Single-phase electric energy meter for DIN bar: 2-module device for installation on DIN rail, ideal for monitoring electrical consumption in domestic, commercial and industrial environments RELIABLE AND PRECISE ELECTRIC CONSUMPTION METER: equipped with 5+1 digit electromechanical numerator with resolution of 0.1 kWh, allows a simple and immediate reading of the energy consumed DIRECT INSERTION UP TO 80A AND 230V 50HZ POWER SUPPLY: Supports a maximum current of 80A in direct insertion, with standard power supply at 230V AC 50Hz OPTOISOLATED PULSE OUTPUT FOR REMOTE READING: 1000 pulse/kWh output for connection to remote reading or monitoring systems. Pulse: duration 80ms, max voltage 30Vdc, max current 27mA ABSORBED ENERGY SIGNAL LEDS: The front LED flashes according to consumption, offering immediate verification of the energy status even without external instruments VEMER TECHNICAL SUPPORT: The meter comes with user manual for installation and use. If necessary, you can contact Vemer technical support at the email address [email protected]
