VEVOR Electrical Enclosure, 24'' x 12'', UL Certified NEMA 4 Outdoor IP65 Waterproof & Dustproof Cold Rolled Carbon Steel Hinged Junction Box for Indoor Use, with Rain

Amazon

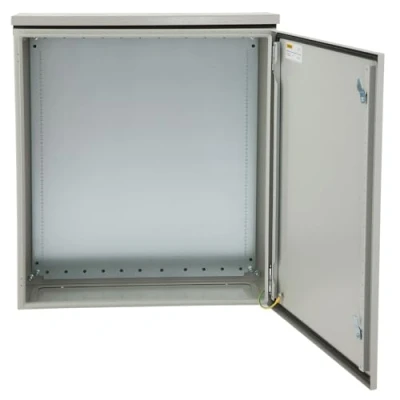

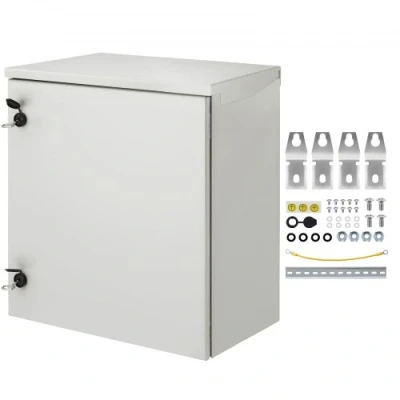

SturDy Steel Construction: Certification: UL 508A (CSA C22.2 No. 14-13.), TUV, CE. The electrical enclosure is meticulously crafted from cold-rolled carbon steel made by precise cutting and welding. It has stronger wear resistance and keeps your equipment well protected in harsh environments. IP65 Waterproof Grade: The sealing strip of foam / Nylon has excellent sealing performance, and the NEMA outdoor enclosure provides an optimal protection level of IP65. A rain hood can be mounted on top of the electrical box, which avoids dirt and water from entering the box when the lid is opened. Reinforced Lock & Hinge: The electrical outdoor enclosure features a high-quality lock core to increase security and lockability, making it less likely to fall off. The high-strength hinged lid is designed to ensure that the door is not easily damaged or broken due to squeezing. Convenient Operation: The metal electrical enclosure box is equipped with a detachable galvanized mounting backplate for the effortless installation of electrical components. Complete accessories and four mounting holes on the back can quickly fix the NEMA enclosure on the wall. Exquisitely Designed Details: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables. Ideal for various applications ranging from industrial equipment to home devices.

Vevor

VEVOR Electrical Enclosure, 24'' x 24'' x 12'', UL Certified NEMA 4 Outdoor Enclosure, IP65 Waterproof & Dustproof Cold-Rolled Carbon Steel Hinged Junction Box for Outdoor Indoor Use, with RainPremium Steel MaterialIP65 Protection LevelHinge and Lock SecurityEffortless InstallationThoughtful DesignExtensive ApplicationConstruction: Continuously Welded,Inner Dimensions(H x W x D): 23.5 x 23.5 x 11 in / 59.7 x 59.7 x 27.7 cm,Color: RAL 7035 (White Gray),Protection Grade: IP65, IK10,Certification: TUV, CE, UL 508A (CSA C22.2 No. 14-13.),Ambient Temperature: -40 to 122℉ / -40 to 55°C,Mounting Hole Diameter(± 0.2 cm): 0.35 in / 0.9 cm,Ratings: NEMA Type 4,Outer Dimensions(H x W x D): 24 x 24 x 12 in / 60 x 60 x 30 cm,Body Material: 0.06 in / 0.15 cm Cold-Rolled Carbon Steel,Inner Plate: 0.06 in / 0.15 cm Galvanized Plate,Galvanized Backplate Dimensions(H x W): 22.2 x 22 in / 56.5 x 55 cm,Model: ST6630,Gasket Material: Seamless Foam/ Nylon(washer or plug),Finish: Powder Coating(Surface Pickling and Passivization),Net Weight: 60.19 lbs / 27.3 kg
