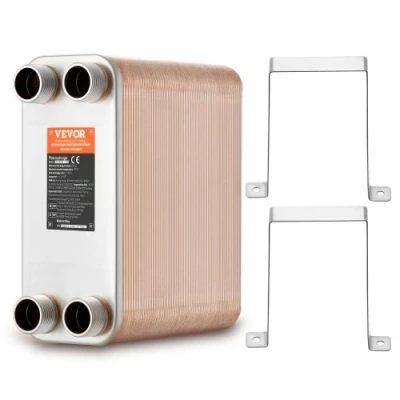

VEVOR Heat Exchanger, 5"x 12" 100 Plates Brazed Plate Copper/316L Stainless Steel Water to Exchanger for Floor Heating, Snow Melting, Beer Cooling

Amazon

High-Quality Materials: Made of 316L stainless steel with 99% copper brazing at edges and contact points, forming a robust and leak-resistant unit that withstands high pressure and temperature. UL and CE certified for reliable quality. Efficient Heat Transfer: The high-conductivity stainless steel plates feature an asymmetrical herringbone pattern, creating intense pressure turbulence for efficient heating/cooling. With up to 99% heat efficiency, it generates 1100-1260K BTU per hour, saving pump power and electricity, reducing overall application costs. Large Heat Exchange Area: The heat exchanger features 5”x12” plates with up to 100 plates, providing excellent heat transfer performance for maximum efficiency. Suitable for operating temperatures from -292℉ to 392℉. Tight and Leak-Proof: To eliminate the possibility of micro-leaks, the heat exchanger uses high-pressure vacuum brazing and undergoes helium leak testing, ensuring long life and high reliability. Stable Installation: Includes two stainless steel brackets made of 304 stainless steel, offering excellent rust resistance and stability for easy and secure mounting of the heat exchanger.

Vevor

VEVOR Heat Exchanger, 5"x 12" 100 Plates Brazed Plate Heat Exchanger, Copper/316L Stainless Steel Water To Water Heat Exchanger For Floor Heating, Water Heating, Snow Melting, Beer CoolingThickened InterfaceHigh Efficiency and Energy SavingDual UseMultiple Sizes AvailableHigh CompatibilitySecure to UsePlate Area: 5x12 inch/ 127x305mm,Heat Capacity: 1100-1260K BTU,Port: 4*1-1/4" MNPT External Thread,Color: Stainless Steel + Copper Color,Model: EATB28-100,Thermal Efficiency: 90～99%,Material: 304/316 Stainless Steel, Solder: 99.9% Copper Brazing,Plates Quantity(pcs): 100,Product Dimensions (L x W x H): 11.85x4.96x9.69in / 301x126x246 mm,Net Weight (with Accessories): 33.51lb / 15.2kg
