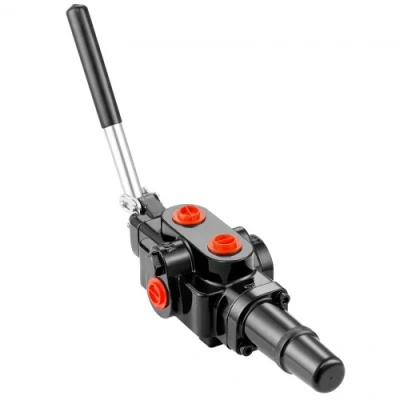

VEVOR Hydraulic Log Splitter Valve 1 Spool, 25 GPM Directional Control Valve, 3626PSI Loader Joystick for Small Tractors, Loaders,

VEVOR's 1-spool hydraulic log splitter valve is an excellent replacement solution for leaking or malfunctioning hydraulic valves, suitable for small to medium-sized log splitters. This valve is widely utilized in various hydraulic systems across multiple sectors, including agriculture, forestry, construction, and industry. Its design incorporates a 1/2'' NPT working port and 3/4'' NPT inlet/outlet ports, ensuring versatile compatibility with different systems.

High Flow and Efficiency

With an impressive flow rate of 25 GPM (95 L/min), this hydraulic directional control valve excels in efficiently splitting heavy and thick logs. It provides ample power to tackle a variety of log types and sizes, ensuring precise and effective splitting every time. This high flow capability is essential for achieving optimal performance in any log splitting task.

Built-in Spring Return Mechanism

The VEVOR valve features a built-in spring return mechanism in its standard spool, which automatically resets to the neutral position upon release. This functionality is complemented by a spring at the base of the handle, enhancing joystick control for a smoother and more convenient operation. Users will appreciate the ease with which they can manage tasks, contributing to an overall more efficient workflow.

Durability and Security

Designed with durability in mind, the VEVOR 1-spool hydraulic loader valve is equipped with a hydraulic safety valve that can withstand a maximum pressure of 25 MPa (3626 PSI). This feature ensures the valve can handle demanding applications without compromising on performance or safety. The solid construction, made from vermicular graphite cast iron, guarantees long-term service and reliability, ensuring that the valve remains functional under rigorous conditions.

<a class='cat-link' href='https://bigshopper.co.uk/brand/simple/'>Simple</a> Installation Process

Installation or replacement of the hydraulic loader valve is straightforward and user-friendly. By simply identifying the ports, connecting the pipelines, and tightening each interface, users can complete the installation process with ease. It is crucial to remember to release hydraulic pressure before disassembling the pump or adapter, ensuring safety throughout the installation.

Comprehensive Specifications

This valve is designed with high-quality features, including:

- Rated Working Pressure: 20 MPa (2900 PSI)

- Maximum Working Pressure: 25 MPa (3626 PSI)

- Control Lever: 1 piece

- Dimensions: 11.8 x 9.3 x 4.0 inches (300 x 235 x 102 mm)

- Weight: 9.5 lbs (4.3 kg)

- Main Material: Vermicular Graphite Cast Iron

- Port Type: NPT with specific dimensions for inlet and outlet ports

In summary, the VEVOR 1-spool hydraulic log splitter valve offers a reliable and efficient solution for anyone seeking to enhance their hydraulic system's performance in log splitting and other applications. Its robust design, ease of use, and high flow rate make it a valuable addition to any toolset.
