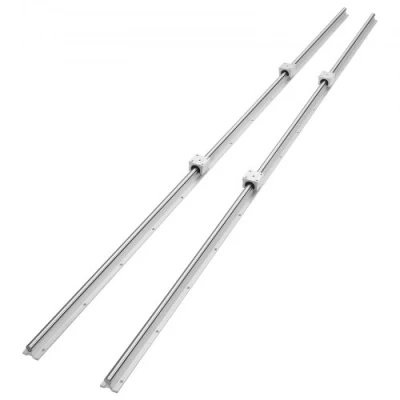

VEVOR Linear Guide Rail Set, SBR20 1800mm, 2 PCS 70.9 in/1800 mm Rails and 4 SBR20UU Slide Blocks, Bearings Kit for Automated Machines DIY Project CNC Router

ManoMano

General description VEVOR high-quality SBR linear guide rail set includes 2 guide rails and 4 slide blocks, designed for high accuracy, wear resistance, and low noise operation. The durable aluminum guide rails feature precise hole diameters and distances, while the SBR slide blocks utilize ball bearings for smooth and unobstructed movement. This versatile set is suitable for various high-load automation equipment and DIY projects, including CNC routers, 3D printers, and laser engravers. Technical specifications Model Number: SBR20-C 1800L Slide Block Model: SBR20UU Guide Rail Length: 70.9 in / 1800 mm Shaft Diameter: Φ20 mm Dynamic Load (per block): 882 N Static Load (per block): 1370 N Material: High Carbon Steel & Aluminum Mounting Hole Distance A: 1.4 in / 35 mm Mounting Hole Distance B: 1.4 in / 35 mm Slide Block Size (L x W x H): 2 x 1.9 x 1.5 in / 50 x 48 x 39 mm Product Dimensions (L x W x H): 70.9 x 3.5 x 1.4 in / 1800 x 90 x 36.3 mm Package Size (L x W x H): 76 x 5.7 x 3.1

Vevor

VEVOR Linear Guide Rail Set, SBR20 1800mm, 2 PCS 70.9 in/1800 mm SBR20 Guide Rails and 4 PCS SBR20UU Slide Blocks, Linear Rails and Bearings Kit for Automated Machines DIY Project CNC Router MachinesHandle Pressure with EaseSmooth Sliding without StutterMore Accurate Than EverBroad Usage ScenariosStrong Corrosion ResistanceInstallation Made EasyShaft Diameter: Φ20 mm,Material: High Carbon Steel & Aluminum,Model Number: SBR20-C 1800L,Product Dimensions(L x W x H): 70.9 x 3.5 x 1.4 in/1800 x 90 x 36.3 mm,Package Size(L x W x H): 76 x 5.7 x 3.1 in/1930 x 145 x 80 mm,Dynamic Load (per block): 882 N,Mounting Hole Distance B: 1.4 in/35 mm,Mounting Hole Distance A: 1.4 in/35 mm,Slide Block Size(L x W x H): 2 x 1.9 x 1.5 in/50 x 48 x 39 mm,Static Load (per block): 1370 N,Slide Block Model: SBR20UU,Net Weight: 29.5 lbs/13.4 kg,Guide Rail Length: 70.9 in/1800 mm
