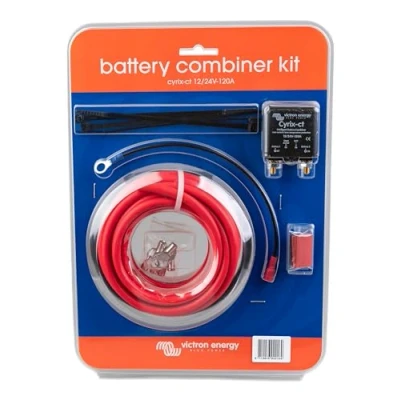

Victron Energy Cyrix ct 12/24 Volt 120 amp Battery Combiner Kit

Victron Energy Cyrix-ct 12/24v-battery Combiner Set 120a. Effortlessly manage your multi-battery setup with the Victron Energy Cyrix-CT 12/24V-120A Battery Combiner Set. This intelligent, microprocessor-controlled relay automatically connects batteries when one is charged and disconnects to protect your starter battery. It offers bidirectional charging, crucial for vehicles, boats, and motorhomes, ensuring you´re never stranded. Features include smart voltage monitoring, emergency start assist, and over-temperature protection, all within a robust IP54 enclosure. The complete kit ensures professional installation and reliable, set-and-forget power management. VICTRON ENERGY Cyrix-CT 12/24V-Battery Combiner Set 120AEffortlessly manage your multi-battery setup with the Victron Energy Cyrix-CT 12/24V-120A Battery Combiner Set. This intelligent and complete kit is the premier solution for anyone needing a reliable and automated power system in their vehicle or vessel.This battery combiner kit is designed to add a 2nd or 3rd battery system to your car, boat or motorhome, or wherever you want.It uses the simplest and most advanced technology to keep your batteries charged by the engine´s electrical system, but isolates the starter battery when charging is complete, so you are never stranded.The Cyrix-CT is a microprocessor-controlled heavy-duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage , and disconnects when the voltage decreases below the float level . This intelligent management ensures your starter battery is always protected and ready to go.Key Benefits:* Intelligent Battery Management: The Cyrix-CT does more than just measure voltage, its software monitors the general voltage trend. This prevents unwanted and frequent switching due to brief voltage drops, ensuring stable and reliable operation.* Ultimate Reliability: By prioritizing the starter battery, the Cyrix-CT ensures it remains fully charged and isolated from the auxiliary battery drain. This eliminates the risk of being stranded with a dead starter battery.* Bidirectional Charging: The combiner senses voltage on both connected batteries. This means your starter battery can also be charged by your auxiliary system, for example, when a solar panel or shore power charger is connected to the service battery.* Emergency Start Assist: In an emergency situation where the starter battery is discharged or damaged, a push of a button or manual connection allows the Cyrix-CT to parallel the auxiliary battery for 30 seconds, providing the power needed to start the engine.Main Features:* Microprocessor-controlled operation for smart and precise switching.* 12V/24V auto-ranging functionality automatically adapts to your system´s voltage.* Eliminates the need for less efficient diode isolators.* Prioritizes charging of the main starter battery.* Over-temperature protection for enhanced safety and durability.* Robust, IP54-rated enclosure for protection against water spray and dust.Attribute: SetsThis complete kit contains everything you need for a professional and straightforward installation:* 1 x Cyrix-CT 12/24-120 Battery Combiner* 1x6 meter Red 10mm² Cable* 1x0.5 meter Black 10mm² Cable* Assorted Cable Lugs and Terminals* Installation ManualTechnical Specifications:* Continuous Current: 120A* Cranking Rating (5 seconds): 180A* Connect Voltage: Ranging from 13V to 13.8V (12V system) & 26V to 27.6V (24V system)* Disconnect Voltage: Ranging from 11V to 12.8V (12V system) & 22V to 25.7V (24V system)* Power Consumption (when open): < 4 mA* Protection Class: IP54Choose the Victron Energy Cyrix-CT 12/24V-120A Battery Combiner Set for a superior, set-and-forget power management solution that delivers performance, safety, and peace of mind on all your adventures. tradeinn Waveinn

This Battery Combiner Kit is for adding a 2nd or 3rd battery system in your car, boat, RV or any other vehicle It utilizes the simplest and most advanced technology to keep all your batteries charged using the engines electrical system, but isolates the starting battery when charging ceases so you never get stranded Victron Energy Cyrix-ct 12/24-120 is a bidirectional voltage sensitive relay, It will therefore also engage if for example the accessory battery is being charged by a battery charger Intelligent battery monitoring prevents cycling: The software of the Victron Energy Cyrix does more than simply connect and disconnect based on battery voltage and with a fixed time delay. Victron Energy Cyrix looks at the general trend (voltage increasing or decreasing) and reverses a previous action only if the trend has reversed during a certain period of time, The time delay depends on the voltage deviation from the trend Easy to install: There is no need to cut into any factory wiring that may void the manufacturer's warranty of your boat or vehicle
