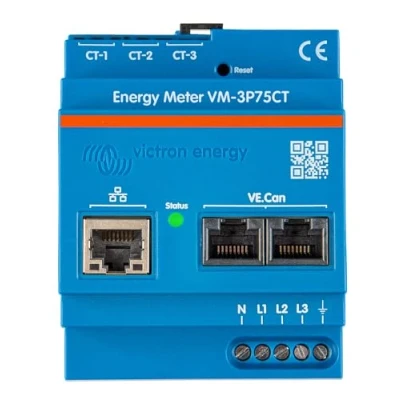

Victron Energy Meter VM 3P75CT

Victron Energy Vm 3p75ct Energy Meter. About this item.Measuring capacity up to 80 arms per phase (but with a rate of 75A).Modbus/UDP communication over Ethernet.Split-core current transformers for easy installation without modifying existing wire.Vector registration method (the vectors of each phase L1, L2 and L3 are summed).As a network meter and used as control input for an energy storage system (ESS).To measure the output of a photovoltaic inverter.To measure the output of an AC Genset.As an AC meter to measure a dedicated AC load circuit.-See more product details.The Victron VM-3P75CT Energy Meter is a standard device for measuring the power and energy of single and three-phase applications and calculates each phase power value and broadcasts over VE.Can or Ethernet at high speed.It has built-in Ethernet and VE.Can ports for connecting to a GX device and split-core current transformers allow for easy and quick installation without modifying the cable.Manufacturer ‎Victron Energy.Part Number ‎REL200300100.Product Dimensions ‎14 x 10 x 7 cm. tradeinn Waveinn

SINGLE, SPLIT AND THREE-PHASE MEASUREMENT: Measures power and energy in single-, split- and three-phase applications. The meter is rated at 75A and can measure up to 80A RMS per phase. 100 MS REFRESH RATE: Calculates the RMS power values for each phase and transmits the data over VE Can or Ethernet with a 100 ms refresh rate, supporting accurate measurement of power usage, grid import and grid feed-in. THREE SPLIT-CORE CTS INCLUDED: Supplied with three wired split-core current transformers for measuring current without modifying the existing installation wiring. Two VE Can terminators are also included. CONFIGURABLE METER ROLES: Can be configured through a compatible GX device as a grid meter, PV inverter meter, AC genset meter or AC load meter. It can also be used to track an EV charger or heat pump. ETHERNET AND VE CAN CONNECTIVITY: Built-in Ethernet and VE.Can ports provide two wired connection options for a compatible GX device. Measurement data can be displayed on a GX device, in VictronConnect and through the VRM Portal.
