vidaXL 2-Axis Tilting Vice 100 mm

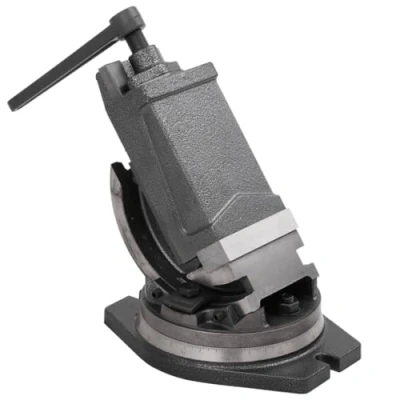

The 2-axis tilting vice is designed for precise workpiece handling with a 100 mm jaw width and solid cast iron construction that provides stability and durability. It offers both tilting and rotating functions to accommodate a range of tasks, including drilling, welding, milling, cutting, and grinding. Hardened jaws resist wear for demanding clamping needs, and a solid thread allows easy span adjustment to fit different workpieces. The unit includes a stable base for secure mounting to a workbench and a fine scale for setting precise angles from 0 to 90 degrees. This versatile vice is suitable for precise execution in multiple fabrication and machining applications.

Features

• 2-axis tilting and rotating function
• 100 mm jaw width for versatile clamping
• Solid cast iron construction
• Hardened jaws for demanding drilling tasks
• Solid thread enables span adjustment
• Fine scale for 0–90° inclination

Technical specifications

• Base size: 320 x 175 mm
• Height adjustable: 170–400 mm
• Tilt/rotation: 0–90 degrees
• Jaw opening: 87 mm
• Clamping depth: 45 mm
• Mounting distance: approx. 155 mm
