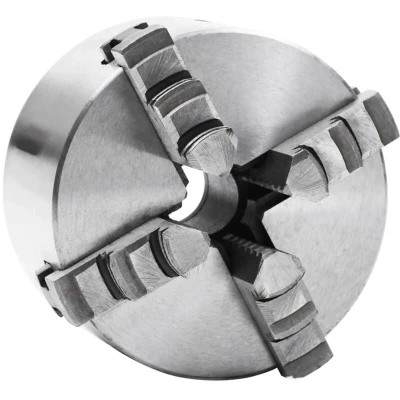

VidaXL 4 Jaw Self-Centering Lathe Chuck 100 mm Steel

This self-centering 4 jaw lathe chuck is designed to perform a wide range of tasks, expanding the possibilities for creating original designs. It offers high clamping accuracy on various surfaces, including fixed solid or hollow circular materials, triangular materials, and hexagonal materials. Constructed from HT300 steel, it provides high hardness and wear resistance, ensuring durability and long-term use. The compact design makes it easy to use, delivering efficient performance for lathe operations.

Features

• Self-centering 4 jaws for versatile gripping
• Internal clamping 2–30 mm; external 30–80 mm
• Max speed 3500 R/min; run out 0.08
• Outside diameter 100 mm; height 55 mm
• Cylindrical inner passage 72 mm; passage 22 mm
• HT300 steel with high hardness and wear resistance

Technical specifications

• Material: HT300 steel
• Color: Silver and black
• Number of jaws: 4
• Clamping ranges: internal 2–30 mm; external 30–80 mm
• Outer diameter: 100 mm; Total height: 55 mm
• Net weight: 3.2 kg
