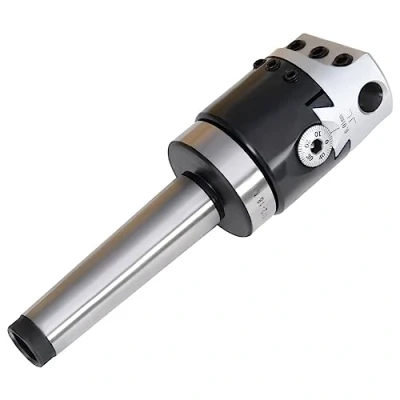

VidaXL 50 mm Boring Head with MT3 Shank for Lathe Milling

This 50 mm boring head features an MT3 shank and is designed for ease of use in a range of machining tasks, including boring end faces, cylindrical shapes, and stepped holes. It is built for durability and accuracy, offering fine workmanship and a precision of 0.01 mm for use with milling machines and machining centers. Constructed from steel with high hardness and wear resistance, the head is designed to maintain reliability during demanding operations. The set includes the MT3 shank, a bore head, and three Allen keys, enabling quick adjustments and setup. The bore head can be fine-tuned to accommodate varying workpieces, and the system supports drilling or boring diameters from 10 mm to 125 mm with a 12 mm bore hole.

Features

• High-precision 0.01 mm
• MT3 shank for compatibility
• Bore capacity 10–125 mm
• Boring hole diameter 12 mm
• Sturdy steel with wear resistance

Technical specifications

• Bore head diameter: 50 mm
• Material: 40 Cr steel
• Drawbar thread: M12
• Maximum accuracy: 0.01 mm
• Includes: MT3 shank, bore head, 3 Allen keys
