VidaXL Camshaft Alignment Tool for VW VAG Audi V6

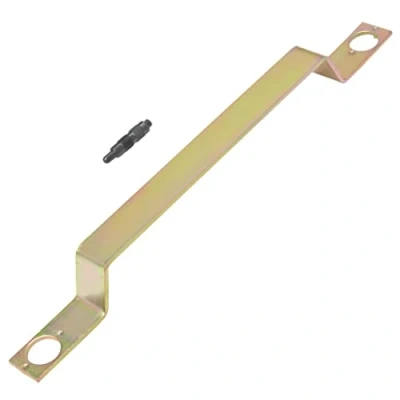

This camshaft alignment tool is designed to hold and secure both camshafts at the top dead center (TDC) position during timing belt replacement or crankshaft bolt removal. It is compatible with 2.4L, 2.7L Bi-Turbo, and 2.8L engines with five valves per cylinder, and is suitable for vehicles including Audi A4, A6, A8, S4, and VW Passat. The tool includes a locking pin to lock the crankshaft at TDC during belt work. Made from carbon steel, it provides durable, long-lasting performance with a total length of 68 cm and a pin length of 8 cm.

Features

• Holds both camshafts at TDC during belt work
• Fits 2.4L, 2.7L Bi-Turbo, 2.8L engines with 5 valves
• Compatible with Audi A4/A6/A8 and VW Passat models
• Includes locking pin to lock crankshaft at TDC
• Made of carbon steel; 68 cm long, 8 cm pin

Technical specifications

• Material: carbon steel
• Total length: 68 cm
• Pin length: 8 cm
• Compatible models: Audi A4 2.4/2.8, A6 2.4/2.8, A8 2.8, S4 2.7 Biturbo, VW Passat 2.4/2.8
• Engine codes: 2.4 V6 30V (AGA, AJG, ALF, ALW, AML, AMM, APC, APS, APZ, ARJ, ARN, ASM, BDV); 2.7 V6 30V (GTC, AJK, ARE, ASJ, AZA, AZB, AZR, BES); 2.8 V6 30V (ACK, AEJ, AGE, AHA, ALG, AMX, APR, AQD, ATQ, ATX, BBG)
