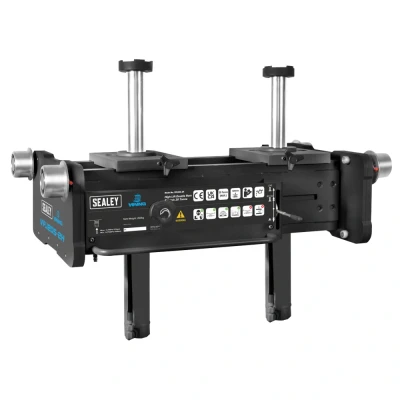

Viking Pit Jack 20 Tonne High Lift Double Ram

Viking Pit Jack 20 Tonne High Lift Double RamFitted with leaf spring support bearings for easy glide transversing the ram. Full 420mm lifting stroke for high axled vehicles. Shut off valves allow twin or single ram lifts. Air operation takes the effort out of lifting heavy plant tractors and commercial vehicles. Rocket lift feature brings the saddle into contact with the jacking point quickly and slows once under load for a controlled lift. Fitted with deadman controls and a limited descent control valve. Manufactured to suit pit widths between 680-960mm. Large handle for moving the frame air coupling and water separator and spare parts tray/tool tray with rubber mat insert.Features EASY GLIDE - Fitted with leaf spring support bearings for easy glide transversing the ram. HIGH LIFT - Full 420mm lifting stroke for high axled vehicles. INDEPENDENT RAM LIFT - Shut off valves allow twin or single ram lifts. PNEUMATIC CONTROL - Air operation takes the effort out of lifting heavy plant tractors and commercial vehicles. QUICK LIFT - Rocket lift feature brings the saddle into contact with the jacking point quickly and slows once under load for a controlled lift. SAFE DESCENT - Fitted with deadman controls and a limited descent control valve. ADJUSTABLE FIT - Manufactured to suit pit widths between 680-960mm. CONVENIENCE - Large handle for moving the frame air coupling and water separator and spare parts tray/tool tray with rubber mat insert. 3 YEAR GUARANTEE*.Specification Fitted with leaf spring support bearings for easy glide transversing the ram. Full 420mm lifting stroke for high axled vehicles. Shut off valves allow twin or single ram lifts. Air operation takes the effort out of lifting heavy plant tractors and commercial vehicles. Rocket lift feature brings the saddle into contact with the jacking point quickly and slows once under load for a controlled lift. Fitted with deadman controls and a limited descent control valve. Manufactured to suit pit widths between 680-960mm. Large handle for moving the frame air coupling and water separator and spare parts tray/tool tray with rubber mat insert. Max. Span: 880mm. 3 Year Guarantee*. Model No. VPJ20S-2HPTDSEAVPJ20S2H

General description Viking Pit Jack is a high lift double ram jack designed for heavy-duty lifting of high axled vehicles, including plant machinery, tractors, and commercial vehicles. It features a full 420mm lifting stroke and is equipped with advanced safety and convenience features for efficient operation. Technical specifications Lifting capacity: 20 Tonne Lifting stroke: 420mm Compatible pit widths: 680-960mm Installation Manufactured to suit pit widths between 680-960mm. Usage Air operation for effortless lifting of heavy vehicles. Shut off valves allow for twin or single ram lifts. Rocket lift feature for quick contact with the jacking point and controlled lifting. Fitted with deadman controls and a limited descent control valve for safe operation. Other information Includes a large handle for easy movement, air coupling, water separator, and a spare parts/tool tray with rubber mat insert. 3 YEAR GUARANTEE*
