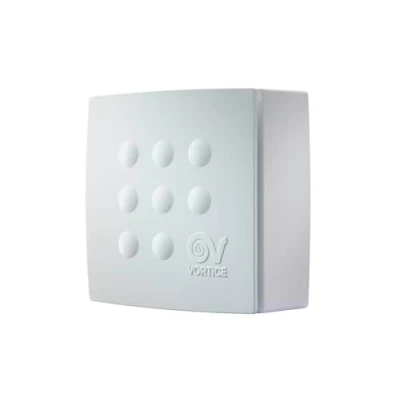

Vortice 11975 Quadro Medio T HCS Centrifugal Extractor Fan with Humidistat/Timer

General description The Centrifugal Duct Fan Quadro Medio THCS is designed for efficient ventilation in various settings. It features a robust ABS plastic housing that is non-yellowing and UV-resistant, ensuring durability and longevity. Technical specifications Voltage: 220-240 V ~ 50 Hz Nominal diameter: 100 mm Speed levels: 2 Wattage: 25 / 29 W Current consumption: 0.14 / 0.18 A Revolutions per minute: 1150 / 1890 Airflow rate: 70 / 120 m³/h Total pressure Pmax: 216 / 329 Pa Sound pressure Lp-3m: 36.7 / 43.4 dB(A) Max. temperature for continuous operation: 50°C IP code: IPX4 Insulation class: II Diameter duct connector: 97 mm Dimensions front: 261 x 261 x 119 mm Total depth with duct connector: 150 mm Weight: 2.5 kg Other information Adjustable shut-off timer (3-20 min) Humidity sensor (60-90%): fan turns off after expiration of the pre-set time once the humidity level falls below the pre-set value Washable synthetic fibre fleece filter Thermal overload protection Self-lubricating

Colour product: QUADRO - High Flow Centrifugal Extractor Part Number: 8010300119755 Product weight: 3.800 Ref 2: XQMETH
