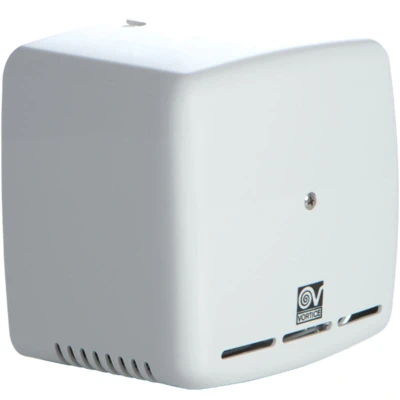

Vortice 12001 Ariett Habitat 20/75 LL dMEV Continuous Running Extractor Fan (For 100mm / 4 Inch Duct)

Mains voltage 230/240V AC. Power consumption 6 - 25 watts (low/high). Continuous running in accordance with ADF System 3. Trickle and Boost speed options Two speeds. Contains integral backdraught shutter. Long Life ball bearing motors which are guaranteed for 30,000 hours continuous, trouble free operation Complete with fixings and anti-vibration support gasket. Wall or ceiling mounted installation. IPX4 splash proof protection Extraction rate 7.5 - 23.6 litres per second (low/high), 27 - 85 cubic metres per hour (low/high). Sound output 30.5 - 50.1 dB(A)@3m (low/high) Dimensions: 156mm wide x 156mm high x 123mm deep (beyond installed surface). 97mm diameter spigot extends for 25mm. For connecting to 100mm diameter ducting., Weight: 2.20462262 Pounds, Manufacturer: Vortice

Dimensions and technical details 230 V ~ 50 Hz Housing colour: white Housing material: ABS plastic, non-yellowing, self-extinguishing Nominal diameter: 100 mm Speed levels: 2 Wattage: 6 / 25 W Current consumption: 0.03 / 0.17 A Revolutions per minute: 890 / 2470 Airflow rate: 27 / 85 m³/h Total pressure Pmax: 78 / 118 Pa Sound pressure Lp-3m: 30.5 / 51 dB(A) Max. temperature for continuous operation: +40°C IP code: IPX4 Insulation class: II Diameter duct connector: 97 mm Dimensions front: 156 x 156 x 123 mm Total depth with duct connector: 148 mm Weight: 1.4 kg Thermal overload protection Ball bearings Non-return valve prevents cold air from infiltrating once the fan is turned off Application: non-stop air extraction in utility rooms, damp environments
