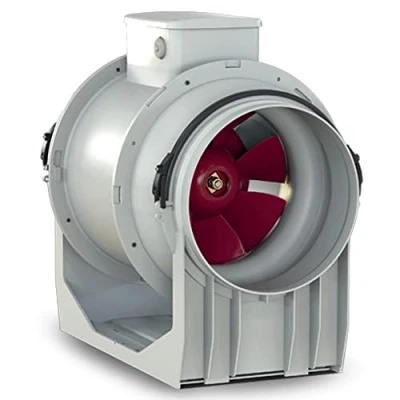

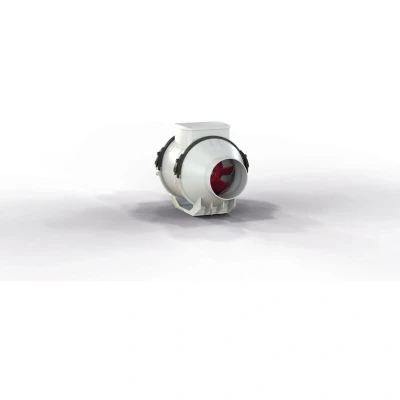

Vortice 17144 TIPO LINEO 100 Centrifugal Mixed Flow Inline Extractor Fan 100mm (Standard Model)

ManoMano

Dimensions and technical details 220-240 V ~ 50/60 Hz Housing colour: grey Housing colour: polyproylene Nominal size: 100 mm Speed levels: 1 Wattage: 23 W Current consumption: 0.11 A Revolutions per minute: 2030 Airflow rate: 255 m³/h Sound pressure level Lp-3m: 39.4 dB(A) Total pressure Pmax: 161.9 Pa Max. temperature of transported air: +60°C Protection class: IP44 Insulation class: II Weight: 1.8 kg Thermal overload protection Includes mounting bracket Mounting options: any position Fan unit can be removed for cleaning and maintenance Dimensions in mm A B C Ø D E F G H L Ø M Lineo 100 188.5 211 303 96 101.5 189 90 60 80 5.5

Amazon

Mains voltage 220-240V AC 50Hz. Two speed options, selectable at installation Extraction rate 70.8 (high speed) / 50 (low speed) litres per second, 255 (high speed) / 180 (low speed) cubic meters per hour Power consumption 20 watts (low speed) / 23 watts (high speed). Sound output 30.7dB(A) (low speed) / 39.4dB(A) (high speed) Long life 30000h motor. Class II - double insulated. CE and UKCA certified Dimensions: 303mm long x 188.5mm wide x 211mm tall (see photo 2). 96mm diameter spigot, extends for 30mm. For connection to 100mm / 4 inch diameter ducting, Manufacturer: Vortice
