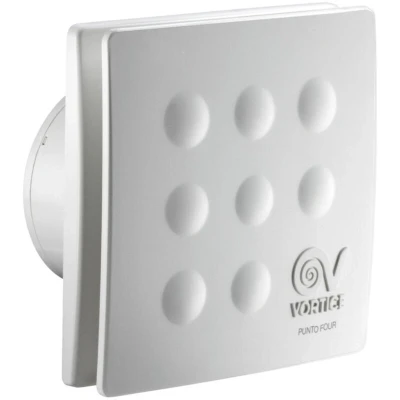

Vortice ASP. ELIC. Punto Four MFO Series 100/4" T 11146

ManoMano

Dimensions and technical details 220-240 Volt ~ 50 Hertz Various options available Housing colour: white Housing material: UV-resistant ABS plastic Nominal size: 100 mm Max. wattage: 15 W Max. current consumption: 0.09 A Revolutions per minute: 2400 Speed levels: 1 Max. airflow rate: 85 m³/h Total pressure Pmax: 29 Pa Sound pressure level Lp-3m: 33.1 dB(A) Max. temperature for continuous operation: 50°C Protection code: IPX4 Protection class: II Weight: 0.55kg Thermal overload protection Integral shutter flap prevents cold air from infiltrating Used to extract air from the inside directly to the outside Mounting options: wall mounting (horizontal, vertical, diagonal position) Optional condensation gasket for ceiling installation kit sold separately Type Equipment Controller Punto Four MFO 100 standard can be added Punto Four MFO 100 T time delay (adjustable 2-30 min) cannot be added Type A B C Ø D Punto Four MFO 100 158 mm 37 mm 97 mm 98.4 mm Optional accessories are available in our

Amazon

Mains voltage 220 - 240V AC 50Hz. Extraction rate 24 litres per second, 85 cubic metres per hour. 15W power consumption 33.1dB(A) @ 3m sound output. IPX4 rated. Time on adjustable 3 - 20 minutes (approx) Class II - double insulated. Suitable for wall mounting. Backdraught strips. Thermal overload protection. CE and UKCA certified
