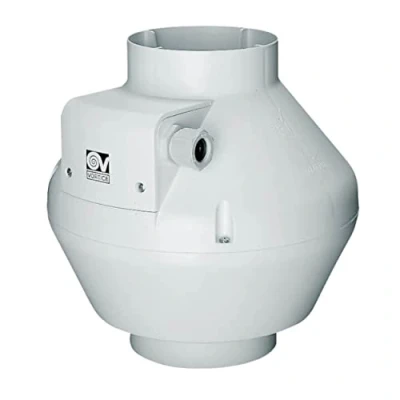

VORTICE Centrifugal axial extractor in resin self extinguishing 150 mm CA VO D 16028

ManoMano

Dimensions and technical details 220-240 Volt ~ 50/60 Hertz Centrifugal inline fan Housing colour: white Housing material: self-extinguishing plastic, non-yellowing Nominal width: 150/160 mm Max. wattage: 52 W Max. current consumption: 0.22 A Max. revolutions per minute: 2400 Max. airflow rate: 460 m³/h Total pressure Pmax: 312 Pa Sound pressure level Lp-3m: 56 dB(A) Max. temperature: 50°C Protection code: IPX4 Insulation class: II Weight: 2.6 kg Thermal overload protection Integrated protection grille on the air intake side Optional speed controllers and sensors sold separately Mounting options: in walls, ceilings, suspended ceilings (steel sheet mounting brackets included in the delivery) Ideal for subtle extraction of air at home, in commercial or industrial buildings Model Ø A B Ø C Ø D E F CA 150 V0 D 300 mm 305 mm 300 mm 147/157 mm 30/30 mm 30/60 mm Optional accessories are available in our shop.

Amazon

Structure in self-extinguishing PP V0 thermoplastic resin. Nominal diameter 150mm 3-speed fan consisting of: AC motor, thermally protected, with shaft mounted on ball bearing support, centrifugal impeller with rebellious blades. Suitable for remote environmental sensors of: Temperature, Relative Humidity, Smoke and Presence.
