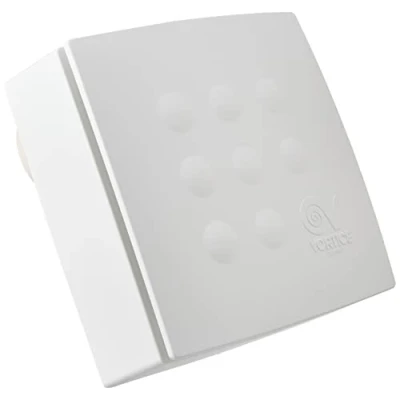

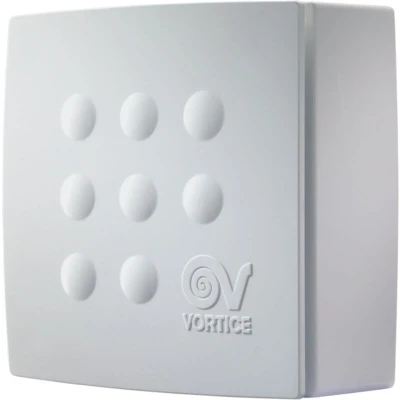

Vortice Quadro Micro 100 T Surface Centrifugal Timer Fan

Prices from
42.30

Sponsored links

COMPARE ALL WEBSHOPS (2)

Description

ManoMano General description The Centrifugal Duct Fan Quadro Micro 100 T is designed for efficient ventilation in various settings. It features a robust ABS plastic housing that is UV-resistant and non-yellowing, ensuring durability and longevity. Technical specifications Operating voltage: 220-240 V ~ 50 Hz Nominal diameter: 100 mm Speed levels: 2 Wattage: 20 / 28 W Current consumption: 0.1 / 0.13 A Revolutions per minute: 1180 / 1600 Airflow rate: 65 / 90 m³/h Total pressure Pmax: 157 / 216 Pa Sound pressure Lp-3m: 32.9 / 39.2 dB(A) Max. temperature for continuous operation: 50°C IP code: IPX4 Insulation class: II Diameter duct connector: 97 mm Dimensions front: 239 x 239 x 97 mm Total depth with duct connector: 117 mm Weight: 1.8 kg Other information Adjustable shut-off timer (3-20 min): fan turns off after expiration of the pre-set time Washable synthetic fibre fleece filter Thermal overload protection Self-lubricating bush bearings Non-return valve prevents cold air from infiltrating once

Compare webshops (2)

Sponsored links · Some shops pay us a fee

Sort by:

£ 42.30

£ 235.75

Description (1)

General description The Centrifugal Duct Fan Quadro Micro 100 T is designed for efficient ventilation in various settings. It features a robust ABS plastic housing that is UV-resistant and non-yellowing, ensuring durability and longevity. Technical specifications Operating voltage: 220-240 V ~ 50 Hz Nominal diameter: 100 mm Speed levels: 2 Wattage: 20 / 28 W Current consumption: 0.1 / 0.13 A Revolutions per minute: 1180 / 1600 Airflow rate: 65 / 90 m³/h Total pressure Pmax: 157 / 216 Pa Sound pressure Lp-3m: 32.9 / 39.2 dB(A) Max. temperature for continuous operation: 50°C IP code: IPX4 Insulation class: II Diameter duct connector: 97 mm Dimensions front: 239 x 239 x 97 mm Total depth with duct connector: 117 mm Weight: 1.8 kg Other information Adjustable shut-off timer (3-20 min): fan turns off after expiration of the pre-set time Washable synthetic fibre fleece filter Thermal overload protection Self-lubricating bush bearings Non-return valve prevents cold air from infiltrating once


Product specifications

Brand VORTICE
EAN
  • 8010300119403
Material
  • Ask the seller
  • Pvc
Color
  • White
Size
MPN
  • 11940
