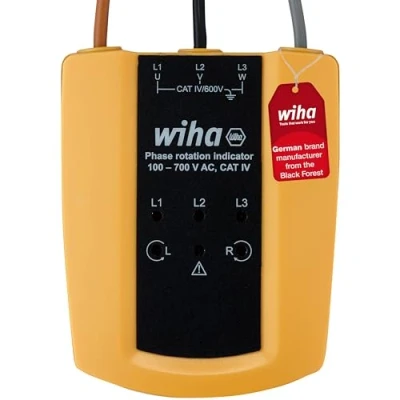

Wiha Rotational Field Indicator 700V Ac

This Wiha Rotational Field Indicator comes with an integrated phase display. The rotation direction as well as the live phases are reliably indentified with the help of an LED display. A crocodile clip included with the delivery allows a simple connection e.g. with a motor terminal board.In combination with the included test tips the rotation indicator from Wiha offers great testing flexibility. The rotational field indicator works with the mains voltage itself so no batteries are required.According to the measurement category CAT III up to 1 000 V and CAT IV up to 600 V the rotation indicator offers maximum safety for working directly on the source of low voltage installations. Confroms to IEC/EN 61010-1 IEC/EN 61577-7 IEC/EN 611010-031 IP40 CAT IV 600V Standards. Specifications: Current Input: 3 5 mA.Min. - Max. Voltage (AC/DC): 100-700V/100-700V.Max. Input Voltage per phase (Lx) against neutral (N): 400V.Operating Temperature: 0°C - 40°C.Protection Class: IP 40.PTDWHA45221

Simplifies your work : LED display for easy to read measurement results. Increases your efficiency : Simple determination of the rotary field and phase indication in a single tool. Increases your flexibility : Testing tips for variable application options. Dimensions : 93 x 75 x 31 mm Application : Determination of the rotation direction and monitoring the phases. Standards : CAT IV 600V Determining the direction of rotation in a three-phase power supply to check electrical connections? Not a problem with the Wiha rotational field indicator with integrated phase display. The rotation direction as well as the live phases are reliably indentified with the help of an LED display. A crocodile clip included with the delivery allows a simple connection, e.g. with a motor terminal board. In combination with the included test tips, the rotation indicator from Wiha offers great testing flexibility. The rotational field indicator works with the mains voltage itself, so no batteries are
