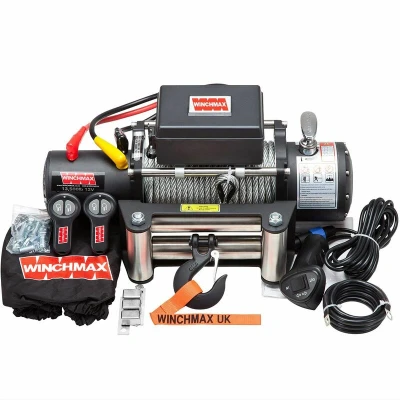

Winchmax 13,500lb (6,123kg) Military Grade 12v Electric Winch. 26m x 9.5mm Steel Wire Rope. 3/8 inch Clevis Hook.

Name: Winchmax 13,500lb (6,123kg) Military Grade 12v Electric Winch. 26m x 9.5mm Steel Wire Rope. 3/8 inch Clevis Hook.
Brand: Winchmax
SKU: f028e155d873d46559bf1e14f453747a
Price: 459.95 GBP
Availability: InStock

1/1

Image of Winchmax 13,500lb (6,123kg) Military Grade 12v Electric Winch. 26m x 9.5mm Steel Wire Rope. 3/8 inch Clevis Hook.

ManoMano

Prices from

459.95

Featured

	£ 459.95	To Shop
COMPARE ALL WEBSHOPS (1)

Description

ManoMano General description The 13,500lb (6,123kg) Military Grade 12V Winch is designed for recovery trucks and 4x4 vehicles up to 3.5T. This powerful winch features a robust construction with advanced anti-corrosion measures, making it suitable for demanding environments. Technical specifications Single Line Rated Pull: 13,500lb (6,123kg) Motor: 12V 6.8hp/5.1kw, series wound Gear Train: 3 stage planetary Gear Reduction Ratio: 265:1 Clutch: Sliding ring gear Braking Action: Automatic in the drum Drum Size: Diameter 64mm (2.52”), length 224mm (8.82”) Drum Finish: Galvanized Cable: 26m x 9.5mm galvanized steel wire rope Hook: Clevis hook 3/8 inch, black Fairlead: 4-Way roller fairlead Battery Leads: 2 gauge, 1.83m (72”) 35mmsq - 6.5mm diameter Recommended Battery: 650CCA minimum for winching Winch Finish: Matt black (low light paint) Weight (GW): 40kg (88lb) Overall Dimensions (LxWxH): 536 x 160 x 218mm (21.3” x 6.3” x 8.6”) Mounting Bolt Pattern: 10.00” ± 0.015” x 4.50” ± 0.010” (254 x

Compare webshops (1)

Sort by:

£ 459.95

Description (1)

General description The 13,500lb (6,123kg) Military Grade 12V Winch is designed for recovery trucks and 4x4 vehicles up to 3.5T. This powerful winch features a robust construction with advanced anti-corrosion measures, making it suitable for demanding environments. Technical specifications Single Line Rated Pull: 13,500lb (6,123kg) Motor: 12V 6.8hp/5.1kw, series wound Gear Train: 3 stage planetary Gear Reduction Ratio: 265:1 Clutch: Sliding ring gear Braking Action: Automatic in the drum Drum Size: Diameter 64mm (2.52”), length 224mm (8.82”) Drum Finish: Galvanized Cable: 26m x 9.5mm galvanized steel wire rope Hook: Clevis hook 3/8 inch, black Fairlead: 4-Way roller fairlead Battery Leads: 2 gauge, 1.83m (72”) 35mmsq - 6.5mm diameter Recommended Battery: 650CCA minimum for winching Winch Finish: Matt black (low light paint) Weight (GW): 40kg (88lb) Overall Dimensions (LxWxH): 536 x 160 x 218mm (21.3” x 6.3” x 8.6”) Mounting Bolt Pattern: 10.00” ± 0.015” x 4.50” ± 0.010” (254 x
